2CSK1202CH
Part Number: 2CSK1202CH
Product Information
Extended Description

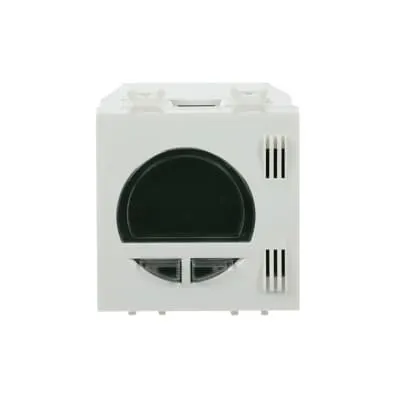

2CSK1202CH ABB: Summer/winter electronic thermostat, relay output, 1 NO contact 8A (AC1)/2A (AC15) - Power supply 230V~ 50/60Hz
Instructions and Manuals
2CSK1202CH - Chiara 2 mod. Thermostat instruction sheet
Mounting Type
Flush Mounted
Degree of Protection
IP30
Temperature Class Default
II
Data Sheet, Technical Information
2CSK1202CH - Chiara 2 mod. Thermostat instruction sheet
Measuring Range
0 … 50 °C
Number of Main Contacts NO
1
Number of Outputs
Heater 0 | Cooler 0
Control Characteristic
PID
Operating Mode
Button
Connection Type
Two Wired
Contact Type
Normally Open (NO)
Sensor Type
Resistance sensor
Illumination
Non-illuminated
Thermal Feedback
Series
Rated Current (In)
8 A
Power Consumption (@Pcons)
0.5 W
Design Range
Chiara
Surface Finishing
Basic
Material
Plastic
RAL Number
RAL 9003 - Signal White
Color
Clear white
Width in Number of Modular Spacings
2
Product Net Width
55 mm
Product Net Height
60 mm
Product Net Depth / Length
50 mm
Product Net Weight
0.007 kg
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
9AKK108467A8345
ETIM 9
EC010927 - Room thermostat
