2CSK1204CH
Part Number: 2CSK1204CH
Product Information
Extended Description

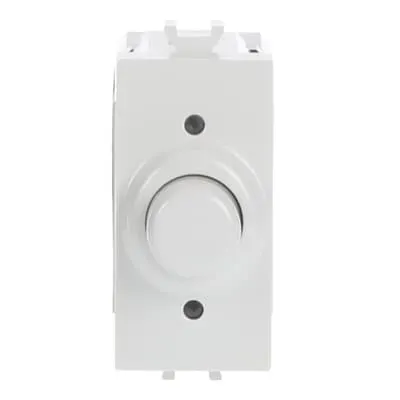

2CSK1204CH ABB: Electronic dimmer with rotary control and with two-way switch for resistive loads 100-500W, 230V~ - 50/60Hz
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP40
Actuator Type
Turn/push button
Connection Type
Screw
Illumination
Non-illuminated
Rated Voltage (Ur)
230...230 V
Frequency (f)
50...60 Hz
Load Type
Resistive load
Power Watt
100...500 V·A
Control Supply Voltage
230...230 V
Design Range
Chiara
Surface Finishing
Untreated | Glossy
Material
Plastic
RAL Number
RAL 9003 - Signal White
Color
White
Width in Number of Modular Spacings
1
Product Net Width
22 mm
Product Net Height
45 mm
Product Net Depth / Length
65 mm
Product Net Weight
0.006 kg
Built-In Depth (t2)
66 mm
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
9AKK108467A8345
ETIM 9
EC000025 - Dimmer
