2CSK1207CH
Part Number: 2CSK1207CH
Product Information
Extended Description

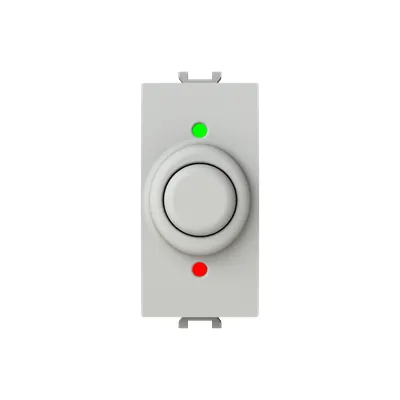

2CSK1207CH ABB: Electronic dimmer with pushbutton control for resistive and inductive loads 60-500W, (60-500VA) 230V~ - 50/60Hz
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP40
Actuator Type
Push button
Connection Type
Screw
Illumination
Non-illuminated
Rated Voltage (Ur)
230...230 V
Frequency (f)
50...60 Hz
Load Type
Resistive load
Power Watt
60...500 V·A
Control Supply Voltage
230...230 V
Design Range
Chiara
Surface Finishing
Untreated | Glossy
Material
Plastic
RAL Number
RAL 9003 - Signal White
Color
White
Width in Number of Modular Spacings
1
Product Net Width
22 mm
Product Net Height
45 mm
Product Net Depth / Length
56 mm
Product Net Weight
0 kg
Built-In Depth (t2)
57 mm
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
9AKK108467A8345
ETIM 9
EC000025 - Dimmer
