2CSK1214CH
Part Number: 2CSK1214CH
Product Information
Extended Description

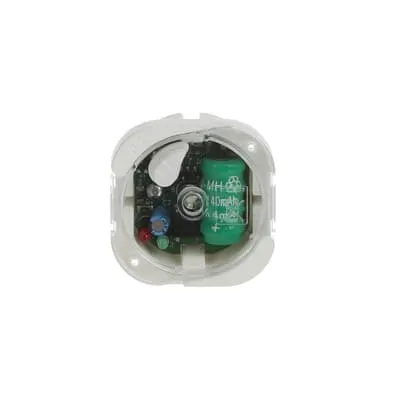

2CSK1214CH ABB: Removable anti-blackout light, 230V~. Charge reserve 4.5 h and recharge time 10-20h. To be combined with 230V~ plug sockets; particularly recommended for codes 2CSK1108CH and 2CSK1109CH.
Instructions and Manuals
2CSC600290D0201
Mounting Type
Surface Mounted
Ambient Air Temperature
5 ... 40 °C
Degree of Protection
IP20
Protection Class
Isolated (Class II)
Data Sheet, Technical Information
2CSC600290D0201
Function
Escape route lighting
Number of Poles
2P
Number of Lamps
1
Number of Lighting Heads
1
Functional Testing Capability
Automatic Self Test
Wiring Configuration
Wiring system: Continuous circuit/emergency circuit | Type of wiring: Ending
Connection Type
Pluggable
Lamp Type
LED not exchangeable
Light Distribution Type
Diffuser Lens | Optic | Panel
Type of Indicator
Only single-sided
Cover Material
Plastic, Transparent
Illumination
Non-illuminated
Illuminance
Standby Mode 7.54 lm
Battery Chemical Composition
Nickel-Metal Hydride
Service Life
L70/B10at25CEL 4.5 hour | L70/B50at25CEL 4.5 hour | L80/B10at25CEL 4.5 hour | L80/B50at25CEL 4.5 hour | L90/B10at25CEL 4.5 hour | L90/B50at25CEL 4.5 hour
Color Temperature (@Tcol)
3000...3000 K
Rated Voltage (Ur)
230...230 V
Input Voltage Type
AC
Power Consumption (@Pcons)
10 W
Power Supply Type
Peripheral (Individual Battery)
Design Range
Chiara
Surface Finishing
Basic
Housing Material
Plastic
Material
Plastic
Color
White
Housing Color
White
Width in Number of Modular Spacings
2
Product Net Width
44 mm
Product Net Height
43 mm
Product Net Depth / Length
50 m
Product Net Weight
0.004 kg
Built-In Depth (t2)
20 mm
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
3. Lamps
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC001957 - Emergency luminaire
