2CSK1305CH
Part Number: 2CSK1305CH
Product Information
Extended Description

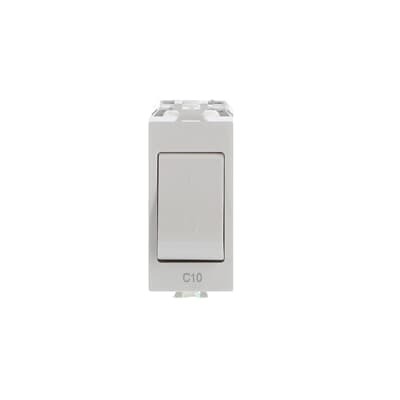

2CSK1305CH ABB: Automatic MCB, 1P+N, C10, breaking capacity 3kA
Instructions and Manuals
MCB AC22 1P+N / RCBO DC22 1P+N - Instruction manual
Ambient Air Temperature
Operation -5...40 °C
Degree of Protection
IP20
Pollution Degree
2
Data Sheet, Technical Information
2CSC600290D0201
Energy Limiting Class
3
Number of Poles
1P+N
Number of Protected Poles
1
Illumination
Non-illuminated
Accessories Available
Yes
Connecting Capacity
Rigid 6 ... 6 mm² | Flexible 6 ... 6 mm²
Tripping Characteristic
C
Rated Operational Voltage
acc. to IEC 60947-2 230 V
Rated Insulation Voltage (Ui)
2000 V
Rated Impulse Withstand Voltage (Uimp)
4 kV
Input Voltage Type
AC
Rated Current (In)
10 A
Rated Short-Circuit Capacity
(230 V) 3 kA
Rated Frequency (f)
50...60 Hz
Overvoltage Category
III
Design Range
Chiara
Surface Finishing
Basic
Material
Plastic
Color
White
Width in Number of Modular Spacings
1
Product Net Width
0 mm
Product Net Height
0 mm
Product Net Depth / Length
0 mm
Product Net Weight
0.006 kg
Built-In Depth (t2)
56 mm
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
