2CSK1307CH
Part Number: 2CSK1307CH
Product Information
Extended Description

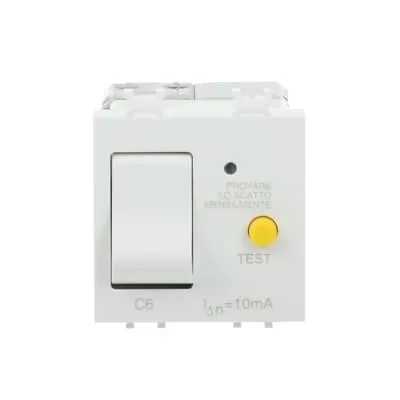

2CSK1307CH ABB: Automatic RCD, 1P+N, type A, C6, 10 mA, breaking capacity 1.5kA
Instructions and Manuals
MCB AC22 1P+N / RCBO DC22 1P+N - Instruction manual
Ambient Air Temperature
Operation -5...40 °C
Degree of Protection
IP20
Pollution Degree
1
Data Sheet, Technical Information
2CSC600290D0201
Type of Residual Current
Type A
Rated Service Short-Circuit Breaking Capacity (Ics)
1.5 kA
Maximum Surge Current
3 kA
Number of Poles
1P+N
Number of Protected Poles
1
Illumination
Non-illuminated
Rated Cross-Section
1 - Solid-Core 6...6 mm² | 4 - Multi-Wired 6...6 mm²
Short-Circuit Current Rating (SCCR)
10 A
Rated Voltage (Ur)
230 V
Rated Operational Voltage
acc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui)
230 V
Rated Impulse Withstand Voltage (Uimp)
4 kV
Input Voltage Type
AC
Rated Current (In)
6 A
Rated Residual Current
10 mA
Rated Frequency (f)
50/60 Hz
Design Range
Chiara
Surface Finishing
Basic
Material
Plastic
Color
White
Width in Number of Modular Spacings
2
Product Net Width
0 mm
Product Net Height
0 mm
Product Net Depth / Length
0 mm
Product Net Weight
0.01 kg
Built-In Depth (t2)
40 mm
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000003 - Residual current circuit breaker (RCCB)
