2CSKK5200C
Part Number: 2CSKK5200C
Product Information
Extended Description

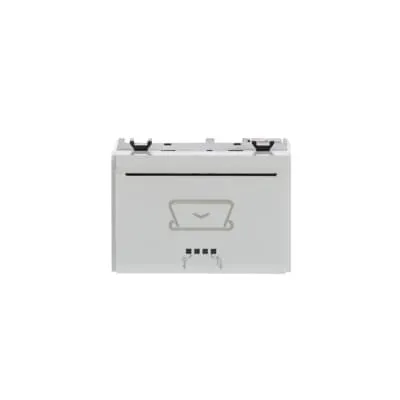

2CSKK5200C ABB: The transponder holder is equipped with a slot into which the transponder card is inserted. In a hotel application, this allows occupancy recognition and notification at the supervisory level (e.g. on the front desk computer). Moreover, room status information can be managed by using special cards (minibar status, maintenance status, usability). The device is equipped with two bistable relays (8 A, 250 Vac), and three voltage-free, non-optically insulated inputs; the 5-Vdc scanning voltage is generated by the device itself. The transponder holder has on the front four LEDs for signaling indications. It requires a 10...32Vdc/12...24Vac auxiliary power supply to ensure its operation even in case of KNX voltage failure.
Instructions and Manuals
Product manual (.PDF) [EN] Access control devices
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Technical data (.PDF) [XX] PTI/U 1.1.CH
Suitable For
2-wire
Product Range
KNX
Number of Batteries
0
Power Supply Type
Bus System
Design Range
Chiara
Surface Finishing
Glossy
Material
Plastic
RAL Number
RAL 9003 - Signal White
Color
White
Product Net Width
66 mm
Product Net Height
46 mm
Product Net Depth / Length
44 mm
Product Net Weight
0.1 kg
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity (.PDF) [XX] Access control Chiara Mylos
ETIM 9
EC002971 - System device clinic-installation
