2CSY255211R0201
Part Number: 2CSY255211R0201
Product Information
Extended Description

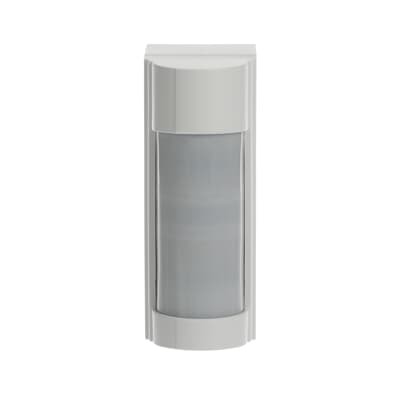

2CSY255211R0201 ABB: The outdoor dual passive IR motion detector is suitable to control the building's external areas. It has to be installed on wall or pole.
The device integrates two infrared detectors: the upper one is fixed, the lower one is vertically adjustable in 5 positions (with 2, 3, 6, 8 and 12 m average coverage area). The alarm is triggered only if both sensors detect a presence
Operational Voltage
3...3 V
Continuous Operating Current (Ic)
1400 mA
Measuring Range
45 °
Transmission Standard
Passive Infrared
Mounting Type
Surface Mounted
Color
white
Battery Chemical Composition
Lithium
Battery Type
Portable
Battery Weight
0.02 kg
Number of Batteries
1
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
200 mm
Product Net Height
130 mm
Product Net Depth / Length
80 mm
Product Net Weight
0.550 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.58 kg
Instructions and Manuals
2CSM600709D0901_Outdoor dual IR motion detector
ETIM 8
EC001762 - Movement sensor for intrusion detection system
