2CSY255311R0204
Part Number: 2CSY255311R0204
Product Information
Extended Description

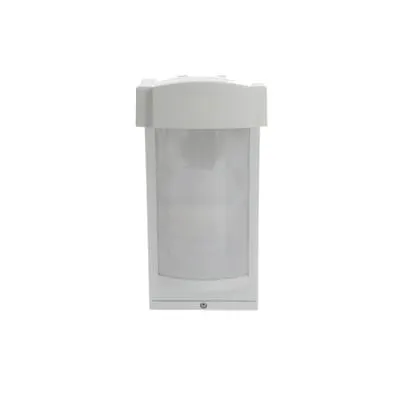

2CSY255311R0204 ABB: This device, specific to be installed on the wall at a height of 2.5 - 3 m, allows to control building's external areas. Through the two IR detectors, the device indicates the presence of intruders avoiding false alarm alerts.
The detector provides an anti-masking function (that can be disabled).
This device communicates bidirectionally with the central unit that supervises it at programmable intervals (every 15 minutes by default)
Operational Voltage
3...3 V
Continuous Operating Current (Ic)
1400 mA
Measuring Range
85 °
Transmission Standard
Passive Infrared
Mounting Type
Surface Mounted
Color
white
Battery Chemical Composition
Lithium
Battery Type
Portable
Battery Weight
0.02 kg
Number of Batteries
2
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
285 mm
Product Net Height
200 mm
Product Net Depth / Length
110 mm
Product Net Weight
0.550 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.58 kg
Replacement Product ID (NEW)
No replacement
Instructions and Manuals
2CSM600710D0901_Outdoor dual IR motion detector for heights
ETIM 8
EC001762 - Movement sensor for intrusion detection system
