2CSY255361R1701
Part Number: 2CSY255361R1701
Product Information
Extended Description

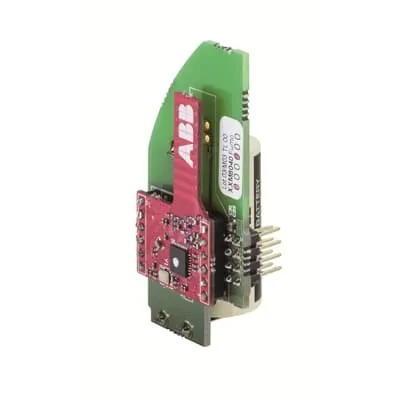

2CSY255361R1701 ABB: The module is required for interfacing the smoke detectors (article no. 6800-0-2721) or heat detectors (article no. 6800-0-2723) to the central unit. The module is equipped with an integrated lithium battery - minimum battery life: 10 years. The device features a bidirectional communication with the central unit that supervises it with a programmable supervision interval (typically every 15 minutes). It is possible to configure this parameter during the system commissioning.
Operational Voltage
3 V
Continuous Operating Current (Ic)
1.8 A
Mounting Type
Surface Mounted
Battery Chemical Composition
Lithium
Battery Type
Industrial
Battery Weight
0.02 kg
Number of Batteries
1
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
70 mm
Product Net Height
45 mm
Product Net Depth / Length
25 mm
Product Net Weight
0.020 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.05 kg
Instructions and Manuals
2CSM600714D0901_Smoke alarm interface module
ETIM 8
EC001764 - Technical detector for intrusion detection system
