2CSYE1101S
Part Number: 2CSYE1101S
Product Information
Extended Description

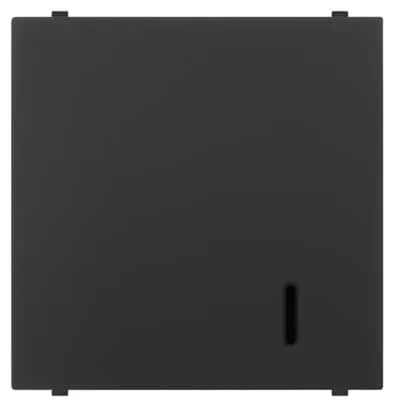

2CSYE1101S ABB: Relay actuator unit, 16 A
Instructions and Manuals
2CSYE1101C/S - Mylos free@home relay actuator 16A
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
2CSYE1101C/S - Mylos free@home relay actuator 16A
Number of LEDs
0
Maximum Number of Switching Outputs
1
Number of Digital Inputs
0
Compatible Bus Systems
free@home (TP)
Suitable for C-Load
No
Number of Batteries
0
Rated Operational Voltage
200...250 V
Voltage Range
200 … 250 V
Rated Current (In)
16 A
Maximum Switching Current
16 A
Maximum Switching Power
3000 W
Design Range
Mylos
Width in Number of Modular Spacings
2
Product Net Width
43 mm
Product Net Height
44 mm
Product Net Depth / Length
44 mm
Product Net Weight
0.07 kg
Built-In Depth (t2)
43 mm
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - Actuators Mylos free@home
