2CSYE1105S
Part Number: 2CSYE1105S
Product Information
Extended Description

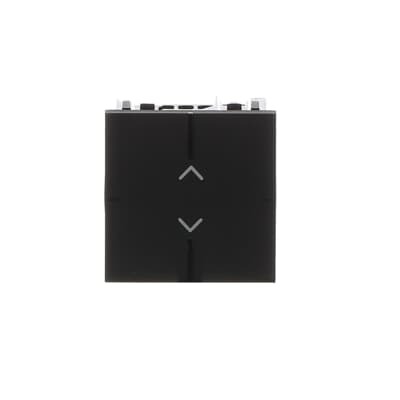

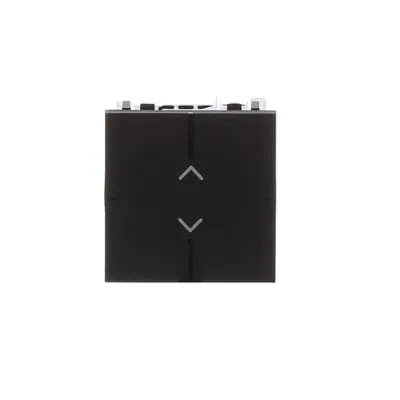

2CSYE1105S ABB: 2CSYE1105S 230V shutter actuator 1 rocker switch
Instructions and Manuals
2CSYE1105C/S - Mylos free@home blind/shutter control - with rocker
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
2CSYE1105C/S - Mylos free@home blind/shutter control - with rocker
Number of Outputs
Venetian-Blind Maximum 1
Number of Inputs
0
Compatible Bus Systems
free@home (TP)
Number of Batteries
0
Current Type
AC
Maximum Switching Current
Resistive Load 8 A
Maximum Switching Power
700 W
Design Range
Mylos
Width in Number of Modular Spacings
2
Product Net Width
43 mm
Product Net Height
44 mm
Product Net Depth / Length
44 mm
Product Net Weight
0.07 kg
Built-In Depth (t2)
43 mm
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - Actuators Mylos free@home
