2CSYE1106S
Part Number: 2CSYE1106S
Product Information
Extended Description

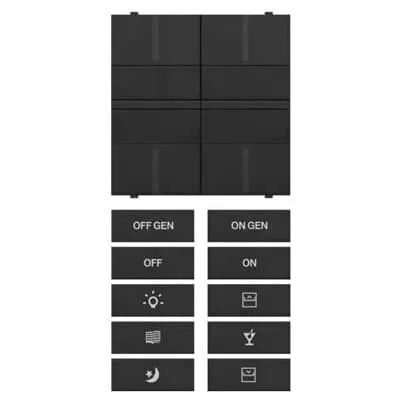

2CSYE1106S ABB: 2 relay actuator, 2x8A, 2 rocker switches
Instructions and Manuals
2CSYE1106C/S - Mylos free@home 2 relay actuators 8A / 2 sensors
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
2CSYE1106C/S - Mylos free@home 2 relay actuators 8A / 2 sensors
Number of LEDs
0
Maximum Number of Switching Outputs
2
Number of Digital Inputs
0
Compatible Bus Systems
free@home (TP)
Suitable for C-Load
No
Number of Batteries
0
Rated Operational Voltage
200...250 V
Voltage Range
200 … 250 V
Rated Current (In)
8 A
Maximum Switching Current
8 A
Maximum Switching Power
1500 W
Design Range
Mylos
Width in Number of Modular Spacings
2
Product Net Width
43 mm
Product Net Height
44 mm
Product Net Depth / Length
44 mm
Product Net Weight
0.07 kg
Built-In Depth (t2)
43 mm
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - Actuators Mylos free@home
