2CSYE1206S
Part Number: 2CSYE1206S
Product Information
Extended Description

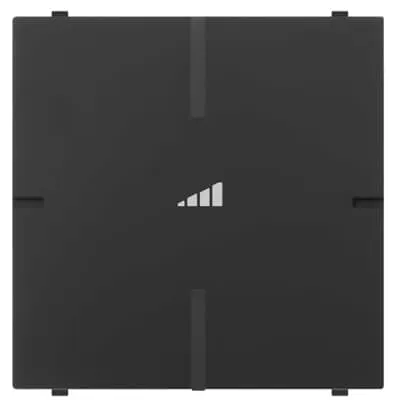

2CSYE1206S ABB: 2CSYE1206S 1/10 reg dimmer with rocker switch
Instructions and Manuals
2CSW600015D0901
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
2CSW600015D0901
Voltage Rating
200...250 V
Number of Outputs
2
Compatible Bus Systems
free@home (TP)
Number of Batteries
0
Rated Operational Voltage
200 V
Maximum Control Current DC
0 mA
Rated Frequency (f)
48...52 Hz
Load Type
Universal
Design Range
Mylos
Width in Number of Modular Spacings
2
Product Net Width
43 mm
Product Net Height
44 mm
Product Net Depth / Length
44 mm
Product Net Weight
0.07 kg
Built-In Depth (t2)
43 mm
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU Declaration of Conformity - Dimmers Mylos free@home
