2CSYK1003S
Part Number: 2CSYK1003S
Product Information
Extended Description

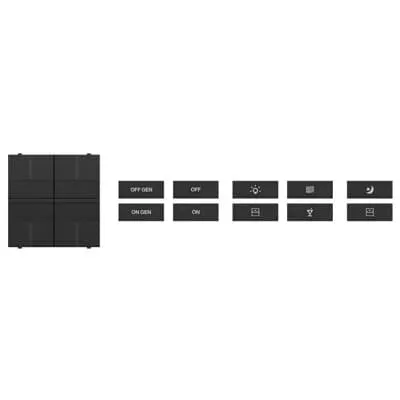

2CSYK1003S ABB: Device equipped with 2 rocker switches; 2 binary input channels that can be used to interface to KNX system conventional push-buttons/rocker switches, or auxiliary/technical contacts. LEDs for the functional signaling of the load to which the rocker switch is connected. Flush-mounted installation.
Instructions and Manuals
Product Manual (.PDF) [EN] 2CSYK1002X 2CSYK1003X
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Product Manual (.PDF) [EN] 2CSYK1002X 2CSYK1003X
Number of Inputs
2
Number of Batteries
0
Input Voltage (Uin)
20...20 V
Input Voltage Type
DC
Design Range
Mylos
Width in Number of Modular Spacings
2
Product Net Width
43 mm
Product Net Height
44 mm
Product Net Depth / Length
44 mm
Product Net Weight
0.07 kg
Built-In Depth (t2)
43 mm
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] 2CSYK100XX
