2CSYK1202S
Part Number: 2CSYK1202S
Product Information
Extended Description

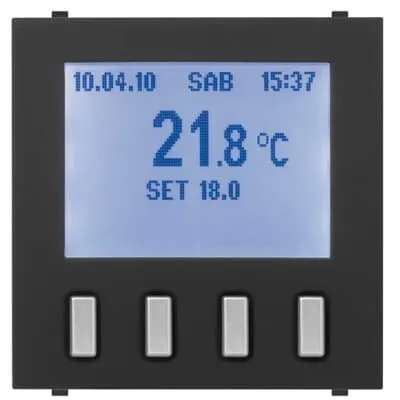

2CSYK1202S ABB: Standard KNX thermostat equipped with backlight LCD display 4 push buttons on the frontfor the following functionalities (Operating mode switching, Fan-coil speed manual switching, set-point manual increment/decrement). Possibility to choose different type of control: 2-point ON/OFF, PWM, Continue, Fan- coil
Instructions and Manuals
Product Manual (.PDF) [EN] 2CSYK1202X
Mounting Type
Flush Mounted
Degree of Protection
IP20
Temperature Class Default
IV
Data Sheet, Technical Information
Product Manual (.PDF) [EN] 2CSYK1202X
Number of Digital Inputs
1
Compatible Bus Systems
KNX
Number of Batteries
0
Power Consumption (@Pcons)
Standby 0.2 W
Design Range
Mylos
Surface Finishing
Lacquered | Matt
Material
Plastic
RAL Number
RAL 9005 - Jet Black
Color
Black
Product Net Width
43 mm
Product Net Height
44 mm
Product Net Depth / Length
44 mm
Product Net Weight
0.07 kg
Built-In Depth (t2)
43 mm
Screen Size
1.5 in
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & ROHS Declaration of Conformity (.PDF) [XX] 2CSYK120XX
