2CSYK1205S
Part Number: 2CSYK1205S
Product Information
Extended Description

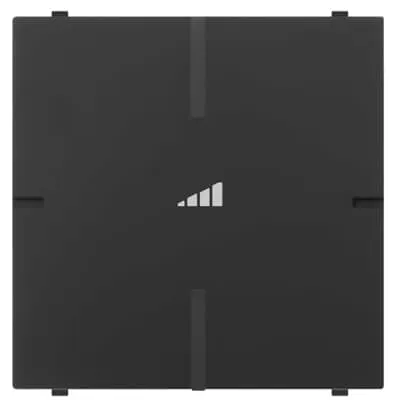

2CSYK1205S ABB: Device with 350W dimmer and rocker switch. Suitable for inductive and capacitive load with automatic recognition. Equipped with LED for load functional signaling.Flush-mounted installation.
Instructions and Manuals
Product Manual (.PDF) [EN] 2CSYK1205X
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Product Manual (.PDF) [EN] 2CSYK1205X
Voltage Rating
200...250 V
Number of Outputs
1
Number of Batteries
0
Rated Operational Voltage
200...250 V
Operational Voltage
200...250 V
Maximum Control Current DC
0 mA
Frequency (f)
48...52 Hz
Rated Frequency (f)
48...52 Hz
Load Type
Universal
Design Range
Mylos
Width in Number of Modular Spacings
2
Product Net Width
43 mm
Product Net Height
44 mm
Product Net Depth / Length
44 mm
Product Net Weight
0.07 kg
Built-In Depth (t2)
43 mm
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & ROHS Declaration of Conformity (.PDF) [XX] 2CSYK1205X 2CSYK1206X
