2TAZ440001R0008
Part Number: 2TAZ440001R0008
Product Information
Extended Description

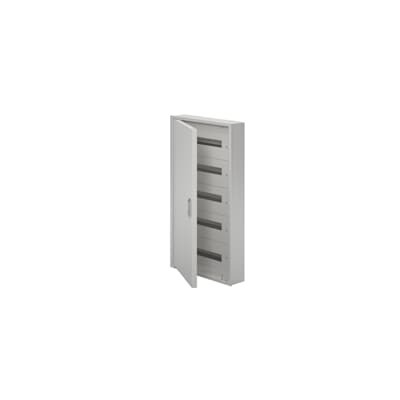

2TAZ440001R0008 ABB: MCU-S5Ă—18 160;MCU-S5Ă—18 160 Consumer Unit
Rated Current (In)
Maximum 160 A
Number of Rows
5
Configuration Type
Standard SDB with DIN-Rail and plate
Mounting Type
Wall Mounting
Enclosure Material
Metal
Cover Color
White
Door Color
White
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP40
Product Net Width
529 mm
Product Net Height
1016 mm
Product Net Depth / Length
126 mm
Product Net Weight
28.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
28.5 kg
Instructions and Manuals
Wall assembly Instruction manual
Data Sheet, Technical Information
Catalogue (.PDF) [CN] MCU Enclosures
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
