2TAZ440101R0004
Part Number: 2TAZ440101R0004
Product Information
Extended Description

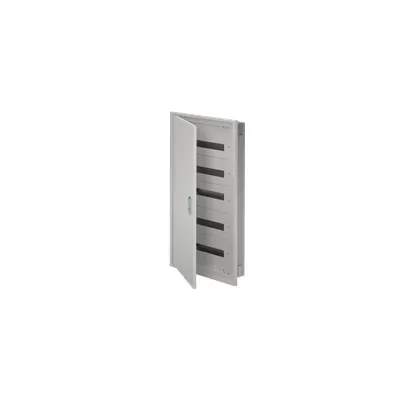

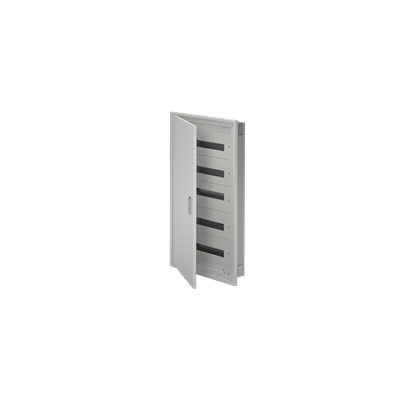

2TAZ440101R0004 ABB: MCU, standard enclosure, MCU-F5Ă—18 Consumer Unit
Rated Current (In)
Maximum 125 A
Number of Rows
5
Configuration Type
Standard SDB with DIN-Rail and plate
Mounting Type
Flush Mounting
Enclosure Material
Metal
Cover Color
White
Door Color
White
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP40
Product Net Width
581 mm
Product Net Height
1068 mm
Product Net Depth / Length
136 mm
Product Net Weight
29.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
29.5 kg
Instructions and Manuals
Flush assembly Instruction manual
Data Sheet, Technical Information
Catalogue (.PDF) [CN] MCU Enclosures
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
