2TAZ45013R0016
Part Number: 2TAZ45013R0016
Product Information
Extended Description

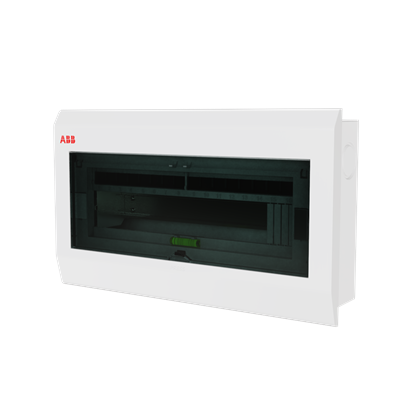

2TAZ45013R0016 ABB: Yingzhi, plastic cover (white), special for poly, 1 row, 16 mod
ABB EcoSolutions
Yes
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 94.83 %
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Sustainable Material Content in Packaging (wt. %)
Recycled Paper - 1.81 % | Recycled Cardboard - 83.08 % | Reusable 15.11 %
Extended Product Lifetime
Product Durability | Product Modularity | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
End Of Life Disassembling Instructions
EOL YuZhi & YingZhi Consumer Units (Plastic Cover)
Environmental Product Declaration - EPD
EPD YuZhi & YingZhi Consumer Units (Plastic Cover)
Number of Rows
1
Configuration Type
Door only for YingZhi Series
Mounting Type
Flush Mounting
Cover Color
White
Door Color
White
Number of Batteries
0
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP40
Product Net Width
400.0 mm
Product Net Height
238.0 mm
Product Net Depth / Length
33.0 mm
Product Net Weight
0.43 kg
Package Level 1 Units
box 4 piece
Package Level 1 Gross Weight
2.60 kg
Instructions and Manuals
Catalogue (PDF) [ZH] Yingzhi Enclosures
Data Sheet, Technical Information
Catalogue (PDF) [ZH] Yingzhi Enclosures
ETIM 9
EC000775 - Cover for distribution board
