2TAZ451101R0016
Part Number: 2TAZ451101R0016
Product Information
Extended Description

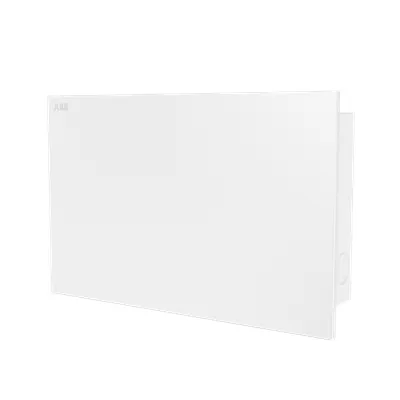

2TAZ451101R0016 ABB: YuZhi , YU-FM-1-16W , Consumer Unit flush mounted metal , 16 modules , white cover and door
ABB EcoSolutions
Yes
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 95 %
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Sustainable Material Content in Packaging (wt. %)
Recycled Paper - 1.32 % | Recycled Cardboard - 85.31 % | Reusable 13.38 %
Extended Product Lifetime
Product Durability | Product Modularity
End Of Life Disassembling Instructions
EOL YuZhi & YingZhi Consumer Unit (Metal Cover)
Environmental Product Declaration - EPD
EPD YuZhi & YingZhi Consumer Units (Metal Cover)
Rated Current (In)
Maximum 125 A
Power Loss
30 W
Number of Rows
1
Configuration Type
Standard Consumer Unit with DIN-Rail
Mounting Type
Flush Mounting
Enclosure Material
Metal
Color
White
Cover Color
White
Door Color
White
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP40
Product Net Width
480 mm
Product Net Height
325 mm
Product Net Depth / Length
142 mm
Product Net Weight
4.97 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
5.4 kg
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
U
