2TAZ452001R0320
Part Number: 2TAZ452001R0320
Product Information
Extended Description

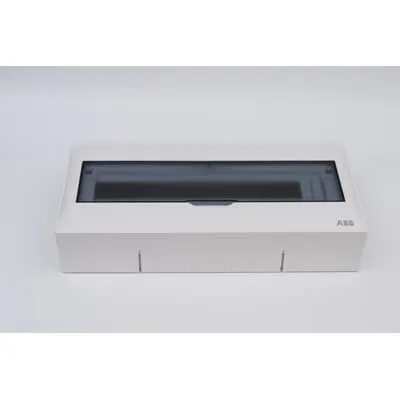

2TAZ452001R0320 ABB: PSC Consumer Units, IP40, Flush mounting, Plastic box & cover, 1 Row, 20 Mod
ABB EcoSolutions
Yes
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 94.23 %
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Sustainable Material Content in Packaging (wt. %)
Recycled Paper - 1.91 % | Recycled Cardboard - 94.78 % | Reusable 3.32 %
Extended Product Lifetime
Product Durability | Product Modularity
End Of Life Disassembling Instructions
EOL for PSC Consumer Units
Environmental Product Declaration - EPD
EPD PSC Consumer Units
Rated Current (In)
Maximum 100 A
Number of Rows
1
Configuration Type
Standard Consumer Unit with DIN-Rail
Mounting Type
Wall Mounting
Enclosure Material
Plastic
Cover Color
White
Door Color
White
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP40
Product Net Width
459.0 mm
Product Net Height
230.0 mm
Product Net Depth / Length
95.0 mm
Product Net Weight
1.130 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
1.36 kg
ETIM 9
EC000214 - Small distribution board
