2TAZ710121R2101
Part Number: 2TAZ710121R2101
Product Information
Extended Description

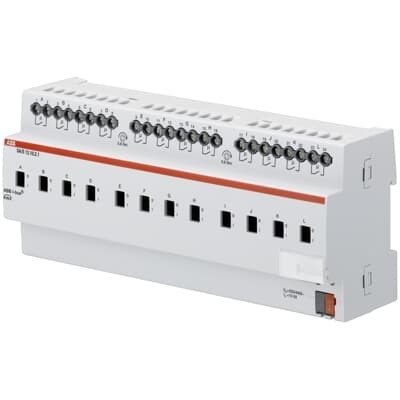

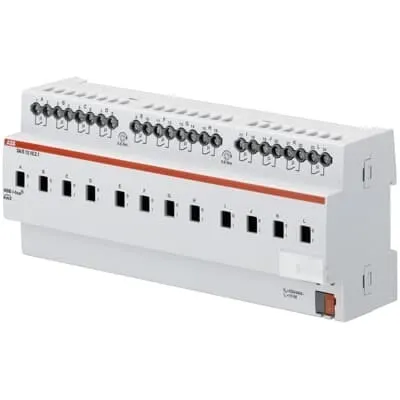

2TAZ710121R2101 ABB: Uses potential free contacts to switch 12 independent electrical loads via the ABB i-bus®. Manual operation and display of the switching state of the contacts. The 10AX device is especially suited for loads with high surge currents e.g. flourescent lighting (AX) acc. EN 60669.
Mounting Type
DIN-Rail
Degree of Protection
IP20
Environmental Information
www.abb.com/knx
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SA/S x.10.2.1
Contact Position Indication
ON / OFF
Number of Outputs
12
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Suitable for C-Load
No
Voltage Range
230 V
Rated Current (In)
10 A
Maximum Switching Power
2500 W
Power Loss
6.5 W
Width in Number of Modular Spacings
12
Product Net Width
216 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.5996 kg
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
eClass
70
Object Classification Code
A
