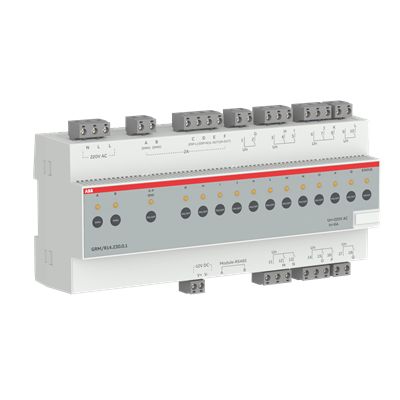

ABB 2TAZ711141R5061 Relay-Dimming Module - CE Declaration
Part Number: 2TAZ711141R5061
Quick Summary
Relay-Dimming module ABB 2TAZ711141R5061 enables RS485 control with 230VAC dimming outputs for emergency lighting in commercial installations. Engineers often struggle to maintain continuous illumination during mains outages, impacting safety, compliance, and guest satisfaction. This module benefits from CE Declaration of Conformity, WEEE compliance, and CMRT, underscoring safety, environmental responsibility, and supply-chain transparency. The result is improved reliability, easier integration with building management systems, and lower lifecycle costs for hospitality, healthcare, and retail.
Product Information
Extended Description
2TAZ711141R5061 ABB: Relay-Dimming module is a device with a combination of RS485 port, 230VAC potential free contact relay outputs and dimming outputs channels. One of the 230VAC potential free contact relays is designed for emergency lighting circuits, when the module detects a loss of incoming 230VAC power, it will automatically switch over the output channel using the emergency power source to power up the emergency lighting. The balance of 230VAC potential free contact relay outputs are suitable for loads with high surge currents e.g. fluorescent/LED lighting (with precondition) and the dimming outputs channels are suitable for trailing edge or resistive type of dimming loads. The module is equipped with zero-crossing protection features to ensure the robustness of the module. The module comes with the manual operation buttons for checking or testing during the commissioning stage.
Number of Batteries
0
Application Function
Hospitality
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Product Net Width
216.0 mm
Product Net Height
111.8 mm
Product Net Depth / Length
64 mm
Product Net Weight
0.612 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.756 kg
Declaration of Conformity - CE
CE Declaration of Conformity BFreLax.pdf
Instructions and Manuals
GRM_R14.230.0.1_QG_EN_9AKK107991A9789_Rev_A
Data Sheet, Technical Information
GRM_R14.230.0.1_TD_EN_9AKK107991A9793_Rev_A.docx
Feature: The RS485 port enables centralized control and remote diagnostics across the lighting network. Business Impact: This reduces wiring complexity and supports scalable architectures, cutting installation time and ongoing maintenance costs. Application: Ideal for hospitality lobbies, office corridors, and retail spaces that require synchronized dimming and status reporting from a standard RS485 master. Feature: 230VAC potential-free relay outputs plus dimming channels deliver flexible load control. Business Impact: Separate emergency lighting and regular lighting channels prevent cross-control issues and improve reliability under fault conditions. Application: Suitable for loads with high surge currents such as fluorescent and LED fixtures with preconditioning, enabling safe and compliant operation. Feature: Dimming outputs support trailing-edge or resistive dimming loads, enabling smooth light transitions. Business Impact: Reduces flicker and improves energy efficiency, contributing to broader sustainability goals. Application: Works with modern LED drivers and conventional dimmable fixtures in hospitality, offices, and public areas. Feature: Zero-crossing protection protects the outputs from switching stress and enhances robustness in demanding installations. Business Impact: Extends module life and lowers maintenance costs in environments with frequent power cycling. Application: Critical for long-life lighting control in theaters, hotels, and healthcare facilities. Feature: Manual operation buttons facilitate commissioning, testing, and quick verification during startup. Business Impact: Reduces commissioning time versus field testing with software-only configurations and minimizes startup risk. Application: Useful in controlled environments like data centers, hotels, or retrofit projects where on-site checks are routine. Feature: Compact, rack-friendly dimensions and weight enable straightforward installation alongside standard electrical hardware. Business Impact: Fast installation, less enclosure space, and compatibility with typical mounting schemes. Application: Office, hospitality, and commercial spaces where space efficiency matters.
Get a Quick Quote for a ABB 2TAZ711141R5061
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TAZ711141R5061?
Enquire Now
FAQs
The device offers a built-in RS485 port for seamless integration with standard lighting control networks. It provides 230VAC potential-free relay outputs and dimming channels, enabling centralized control and status monitoring from an RS485 master. It supports common topologies, while zero-crossing protection and on-site test buttons simplify commissioning and diagnostics.
The dimming outputs support trailing-edge and resistive dimming loads, including high surge currents typical of fluorescent and LED fixtures with preconditioning. This design reduces flicker, enables smooth light ramping, and improves energy efficiency when used with compatible drivers in hospitality and commercial lighting schemes.
Yes. One of the 230VAC relay outputs is dedicated to emergency lighting circuits. When mains power fails, the module automatically switches the emergency lighting channel to the emergency power source, ensuring continuous illumination and helping meet safety and regulatory requirements. This automatic transfer supports uninterrupted operation in corridors and exit paths.
The product ships with a CE Declaration of Conformity, confirming safety and electromagnetic compatibility. It aligns with WEEE compliance and CMRT for responsible sourcing. These certifications support regulatory adherence in commercial installations and provide procurement teams with assurance of sustainability and supply-chain transparency.
Refer to the GRM_R14.230.0.1 manual during installation. The unit measures 216 mm wide, 111.8 mm high, and 64 mm deep, with a net weight of 0.612 kg. It includes manual operation buttons for commissioning checks and benefits from zero-crossing protection to reduce switching stress, enabling straightforward field testing and reliable startup.
