2TAZ730300R4110
Part Number: 2TAZ730300R4110
Product Information
Extended Description

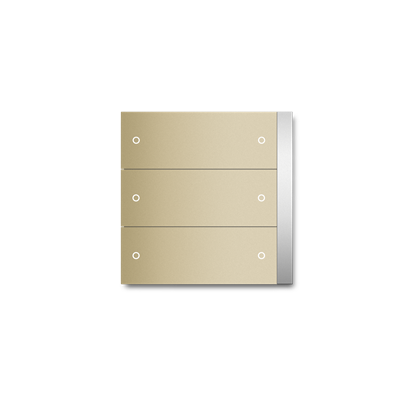

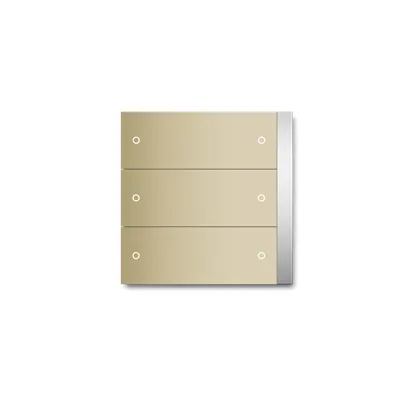

2TAZ730300R4110 ABB: ABB i-bus®KNX sensor PEONIA control element 3/6-fold, FM. With integrated bus coupling unit and temperature sensor. With proximity sensor, energy saving function. Switch contact left/right. Replaceable rocker without icon. Push button function: switching/dimming/blind/value sending/step-type switch/lightscene. Individual programmable LED per rocker. Top and bottom ambient LED strip. LED colour: red/green/yellow/blue/red-orange/violet/white.
Instructions and Manuals
PEB_PEBR_Ux.0.1-xxx_PH_EN_9AKK107046A2227_Rev_B
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN]
Number of Buttons
3
Number of Actuation Points
0
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Design Range
PEONIA
Surface Finishing
Surface protection: Untreated, Surface finishing: Matt
Material
Plastic
Color
Matt Champagne Gold
Product Net Width
85.7 mm
Product Net Height
86 mm
Product Net Depth / Length
40.2 mm
Product Net Weight
101.6 g
Built-In Depth (t2)
35 mm
RoHS Information
CE Declaration of Conformity (.PDF) PEB/U3.0.1-411
RoHS Status
Following EU Directive 2011/65/EU
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) PEB/U3.0.1-411
ETIM 9
EC000672 - Touch sensor for bus system
