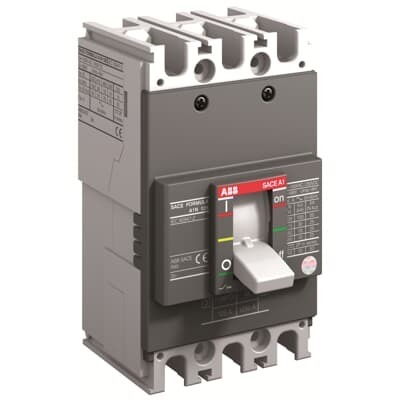

ABB 2TFE100309R1001 MCCB - REACH & RoHS Declarations
Part Number: 2TFE100309R1001
Quick Summary
ABB 2TFE100309R1001 MCCB is a reliable three‑phase molded case circuit breaker designed for industrial control panels and machine builders. Engineers often struggle with regulatory compliance and space constraints in compact switchgear, so a compact footprint with clear, supplier-verified documentation is essential. It carries REACH Declaration, RoHS Information and RoHS Status, plus CMRT and WEEE classifications to support compliant sourcing across regions. With ABB Sace documentation and a 3P + RCD configuration, you gain predictable installation, easier audits, and reduced total cost of ownership in panel builds. Designed for robust performance in demanding environments, it integrates easily with ABB Sace accessories and fits standard 76.2 mm panel spaces, helping streamline procurement and commissioning.
Product Information
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Environmental Information
Breakers - Packaging disposal information
Customs Tariff Number
853620
Product Net Width
76.2 mm
Product Net Height
130 mm
Product Net Depth / Length
60 mm
Product Net Weight
1.9 kg
Package Level 1 Width
191 mm
Package Level 1 Height
221 mm
Package Level 1 Depth / Length
191 mm
Package Level 1 Gross Weight
2 kg
Remarks
ATLAS
Data Sheet, Technical Information
Catalogue (.PDF) [ZH] Formula A MCCB
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Compact dimensions and weight enable easy integration into tight electrical panels, reducing enclosure footprint and associated installation time. Business impact: Lower installation costs and faster time-to-first-power, improving project timelines in factory automation and machine building. Application: Ideal for small-to-mid size control enclosures where space is at a premium. Feature: 3P + RCD configuration provides enhanced protection for three-phase systems and residual current monitoring, enabling selective tripping and safer equipment operation. Business impact: Reduced fault downtime and improved personnel safety, with easier compliance reporting for industrial applications. Application: Use in panel boards and machine control circuits with stringent leakage protection needs. Feature: Material compliance and environmental declarations (REACH, RoHS, CMRT, WEEE) support global sourcing and regulatory adherence. Business impact: Streamlined supplier qualification and audit readiness, with lower risk of non-compliance penalties. Application: Required in multinational manufacturing environments and regulated supply chains. Feature: Clear packaging and mechanical data (76.2 mm width, 130 mm height, 60 mm depth; 1.9 kg) simplify mounting, logistics, and spare-part planning. Business impact: Predictable stocking and faster maintenance planning, reducing downtime. Application: Suitable for standard ABB panel installations and retrofit projects. Feature: Documentation availability (Data Sheet PDF, technical information) and a defined tariff code (853620) support procurement and cross-border shipping. Business impact: Quicker sourcing, accurate customs handling, and smoother project handoffs. Application: Engineering specs and purchasing workflows in global operations.
Get a Quick Quote for a ABB 2TFE100309R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TFE100309R1001?
Enquire Now
FAQs
For panel mounting, ensure the 76.2 mm width fits within standard 3U or 4U enclosures and allow the 130 mm height and 60 mm depth for secure mounting. The unit weighs 1.9 kg, so plan for appropriate mounting hardware and support within the panel frame. Consider space for wiring, terminals, and potential RCD accessories to maintain accessible clearances for maintenance.
Key specs include a 3P configuration with an integrated RCD option, compact overall dimensions of 76.2 mm (W) Ă— 130 mm (H) Ă— 60 mm (D), and a net weight of 1.9 kg. Customs tariff code is 853620, and the device is documented with REACH, RoHS, CMRT, and WEEE classifications to support compliance across regions.
Yes. The product carries a REACH Declaration, RoHS Information and RoHS Status confirming compliance with EU 2011/65/EU and its 2015/863 amendment, plus CMRT for Conflict Minerals reporting. WEEE categorization is provided, supporting end-of-life and recycling requirements for responsible supply chain management.
Documentation includes the Data Sheet, Technical Information catalogue in PDF format (Formula A MCCB), and packaging/environmental information. A defined tariff code (853620) supports customs and import processes, while WEEE and CMRT details assist compliance and supplier qualification during audits.
This MCCB is well-suited for industrial control panels, machine-automation cabinets, and other three‑phase power distribution setups requiring reliable short‑circuit protection with optional residual current protection. It fits standard ABB panel practices, simplifies procurement with clear regulatory declarations, and supports global sourcing in manufacturing environments.
