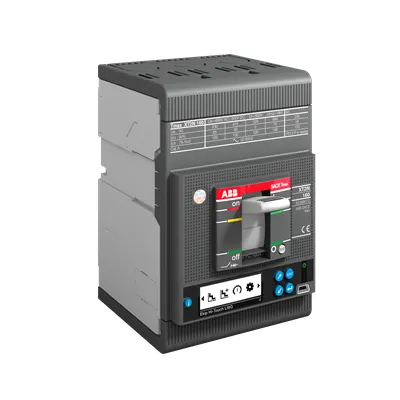

ABB 2TFH100605R1001 MCCB XT2 SACE Tmax - IEC60947-2
Part Number: 2TFH100605R1001
Quick Summary
ABB 2TFH100605R1001 MCCB XT2 provides robust 3P protection for industrial power distribution in motor control centers and utility switchgear. Engineers face coordination, regulatory compliance, costs of ownership, and downtime challenges when selecting circuit breakers for panels. This XT2 based MCCB aligns with IEC60947-2, CE, and RoHS/REACH declarations, helping meet global grid codes and ease regulatory reporting. With 160 A rated current, 1000 V insulation, and 100 kA breaking capacity, it supports reliable protection in demanding environments. This product also benefits installation efficiency, lifecycle testing, and global supply resilience through ABB EcoSolutions, helping you simplify spare parts planning and long-term maintenance.
Product Information
Extended Description
2TFH100605R1001 ABB: XT2H160 Ekip I R160 PMP 3P
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
SCIP
4a66a801-68fa-4697-aca4-48bb8b80c4de China (CN)
Environmental Information
Breakers - Packaging disposal information
Customs Tariff Number
85362000
Product Net Width
90.0 mm
Product Net Height
130 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
2.54 kg
Package Level 1 Width
195 mm
Package Level 1 Height
225 mm
Package Level 1 Depth / Length
195 mm
Package Level 1 Gross Weight
2.64 kg
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
P
Current Type
AC
Electrical Durability
8000 cycle | 120 cycles per hour
Mechanical Durability
25000 cycle | 240 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 13.4 W
Rated Current (In)
160 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 100 kA | (230 V AC) 100 kA | (240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 65 kA | (500 V AC) 50 kA | (525 V AC) 30 kA | (690 V AC) 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 100 kA | (230 V AC) 100 kA | (240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 65 kA | (500 V AC) 50 kA | (525 V AC) 30 kA | (690 V AC) 15 kA
Rated Uninterrupted Current (Iu)
160 A
Release
Ekip I
Release Type
EL
Remarks
ATLAS
Short-Circuit Performance Level
H
Standards
IEC60947-2 | GB/T 14028.2
Sub-type
XT2
Terminal Connection Type
Plug-In Circuit-Breakers
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT2
Instructions and Manuals
Installation Instructions XT2
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: Three-pole XT2 molded case design reduces panel footprint and simplifies busbar routing, enabling compact electrical rooms and faster installation in switchgear assemblies. This translates to reduced installation time and lower capital cost for new lines in manufacturing environments. Feature → Business Impact → Application: High breaking capacity of 100 kA at relevant voltages ensures fast, selective protection for downstream motors and drives, minimizing arc fault exposure and downtime in process industries. Appropriate for 690 V AC distribution in large plants and cement or metal processing facilities. Feature → Business Impact → Application: Low power loss of 13.4 W per pole decreases heat generation, improves overall energy efficiency, and reduces cooling requirements in control cabinets. Beneficial for high-density panel boards with limited ventilation. Feature → Business Impact → Application: High insulation voltage of 1000 V and 8 kV impulse withstand enhance reliability in mixed networks and aerospace or mining applications, supporting longer intervals between maintenance cycles. Feature → Business Impact → Application: Broad compliance package IEC60947-2, CE marking, RoHS, REACH, CMRT, SCIP, and WEEE categorization simplifies procurement, regulatory reporting, and sustainability reporting across global sites. Feature → Business Impact → Application: Plug-In circuit-breaker terminals enable quick swap-outs and scalable panel upgrades, reducing downtime during modernization and enabling modular expansion in automation lines.
Get a Quick Quote for a ABB 2TFH100605R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TFH100605R1001?
Enquire Now
FAQs
Install the 3P XT2 MCCB using plug-in terminals in a compliant enclosure, ensuring correct busbar alignment and secure torque on all connections. Follow the Installation Instructions XT2 for step-by-step guidance. Use compatible mounting rails and ensure clearance for cooling; verify Ue and Ui ratings match your system before energizing.
Key specs include 160 A rated current, 690 V AC rated operational voltage, 1000 V rated insulation voltage, 8 kV rated impulse withstand, 100 kA rated service short-circuit breaking capacity, and 3 poles. It features AC current type, with a power loss of 13.4 W per pole.
Yes, as a 3P XT2 molded case circuit breaker with 100 kA Ics/Icu for 690 V systems, it provides fast overcurrent protection and selective tripping for motors and drives, reducing downtime and equipment damage in process industries.
It conforms to IEC 60947-2 with CE Declaration of Conformity, RoHS information and status, REACH Declaration, CMRT for conflict minerals, SCIP listing, and WEEE categorization, supporting global regulatory compliance and sustainability reporting.
With 8000 electrical durability cycles and 25000 mechanical cycles, the XT2 MCCB supports long service life. Lower heat generation reduces cooling costs, and ABB EcoSolutions streamline spares and lifecycle management, contributing to lower total cost of ownership and improved system reliability.
