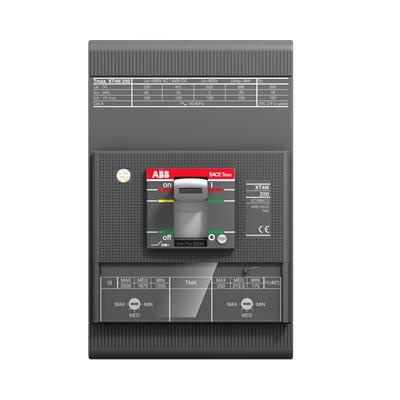

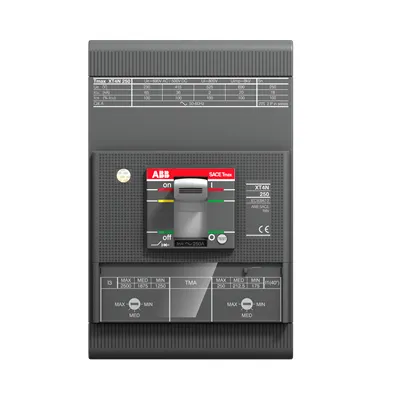

ABB 2TFH102902R1001 Moulded Case Circuit Breaker - Icu 150kA
Part Number: 2TFH102902R1001
Quick Summary
ABB Moulded Case Circuit Breaker protects industrial power distribution in critical automation systems. Many plants struggle with downtime and unreliable protection due to undersized or misapplied breakers. It complies with IEC 60947-2, CE conformity, and RoHS, with documented Declarations of Conformity and installation guidance to support regulatory audits. The XT4 family delivers robust durability with 3P configurations, 160 A uninterrupted current, and a low heat footprint, while meeting expectations for energy efficiency and long service life. This solution enables faster commissioning, simpler spare-part strategies, and predictable protection across 690 V AC / 750 V DC networks, delivering measurable business value in demanding environments.
Product Information
Extended Description
2TFH102902R1001 ABB: XT4L160 TMD25/300 WMP 3P
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Environmental Information
Breakers - Packaging disposal information
Customs Tariff Number
85362000
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
W
Current Type
AC/DC
Electrical Durability
8000 cycle | 120 cycles per hour
Mechanical Durability
25000 cycle | 240 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 2.8 W
Rated Current (In)
25 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC | 750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 150 kA | (230 V AC) 150 kA | (240 V AC) 150 kA | (380 V AC) 120 kA | (415 V AC) 120 kA | (440 V AC) 100 kA | (500 V AC) 60 kA | (525 V AC) 50 kA | (690 V AC) 20 kA | (250 V DC) 2 Poles in Series 85 kA | (500 V DC) 2 Poles in Series 85 kA | (500 V DC) 3 Poles in Series 85 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 150 kA | (230 V AC) 150 kA | (240 V AC) 150 kA | (380 V AC) 120 kA | (415 V AC) 120 kA | (440 V AC) 100 kA | (500 V AC) 60 kA | (525 V AC) 50 kA | (690 V AC) 20 kA | (250 V DC) 2 Poles in Series 85 kA | (500 V DC) 2 Poles in Series 85 kA | (500 V DC) 3 Poles in Series 85 kA
Rated Uninterrupted Current (Iu)
160 A
Release
TMD
Release Type
TM
Remarks
ATLAS
Short-Circuit Performance Level
L
Standards
IEC60947-2 | GB/T 14028.2
Sub-type
XT4
Terminal Connection Type
Withdrawable Circuit-Breakers
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT4
Instructions and Manuals
Installation Instructions XT4
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: Rated current of 25 A in a 3P configuration enables precise protection for small-to-midsize motor drives and line protection, reducing nuisance trips and extending equipment life in process lines and packaging machines. This improves uptime and lowers maintenance costs by avoiding unnecessary outages while maintaining coordination with upstream protections. Feature → Business Impact → Application: With Icu and Ics ratings up to 150 kA and a 8 kV impulse withstand, the breaker delivers high-energy protection for critical bus sections and feeders, supporting safe operation in metal fabrication and mining environments and allowing selective tripping. Feature → Business Impact → Application: Power loss of 2.8 W per pole minimizes heat generation in switchboards, enabling denser panel layouts, smaller enclosures, and improved thermal management in food and beverage processing lines. Feature → Business Impact → Application: Withdrawable circuit-breaker design enhances maintenance efficiency and technician safety, enabling rapid replacements and testing of protection schemes in automation cells and robotic workstations. Feature → Business Impact → Application: Compliance with IEC 60947-2 and CE RoHS declarations reduces audit risk and streamlines global deployment of OEM panels across Europe and Asia, supporting regulated industries like automotive assembly and packaging. Feature → Business Impact → Application: 690 V AC / 750 V DC rated operating voltage supports mixed-voltage architectures common in machinery, conveyors, and packaging systems, enabling consistent protection without mismatched components and simplifying spare-part inventories.
Get a Quick Quote for a ABB 2TFH102902R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TFH102902R1001?
Enquire Now
FAQs
The XT4 series is designed for withdrawal-ready, three-pole configurations. It fits standard low-voltage switchgear and is compatible with ABB SACE Tmax XT panels, simplifying panel modernization and maintenance. Its withdrawable design speeds up testing, replacement, and coordination checks without pulling the entire assembly.
Key ratings include a rated current of 25 A, rated insulation voltage of 1000 V, rated impulse withstand voltage of 8 kV, and Ics/Icu up to 150 kA. It operates at 690 V AC / 750 V DC and uses 3P configuration, making it ideal for small-to-mid power distribution, conveyors, and machine control in manufacturing environments.
Yes. With Icu up to 150 kA and Ics up to 150 kA across multiple voltage categories, the breaker delivers robust short-circuit protection for demanding lines. This enables selective tripping and enhanced system availability in process industries like chemical, food and beverage, and heavy manufacturing.
The device complies with IEC 60947-2 and GB/T 14028.2, with CE Declarations of Conformity and RoHS compliance. CMRT data is available for supply-chain transparency, supporting responsible sourcing and regulatory audits in global deployments.
Plan for electrical durability up to 8000 cycles and mechanical durability up to 25000 cycles, with attention to contact wear and arcing conditions. Routine thermal checks, periodic functional testing, and stocking withdrawable components will minimize downtime and extend service life in automated production lines.
