ABB 2TFN000218A1001 Moulded Case Circuit Breaker - IEC60947-2
Part Number: 2TFN000218A1001
Quick Summary
ABB 2TFN000218A1001 Moulded Case Circuit Breaker is a protection device designed for reliable fault isolation in control panels and industrial cabinets. Engineers increasingly face downtime from mis-coordinated protection or nuisance trips, so precise, staged protection is critical. This unit complies with IEC60947-2 and CE (EC Declaration of Conformity), and aligns with GB/T 14028.2, RoHS, and CMRT for responsible sourcing. Optimized for automation applications, it integrates with SACE Tmax XT series trip units and supports front-terminal wiring, delivering measurable business value through safer operation and reduced maintenance.
Product Information
Extended Description

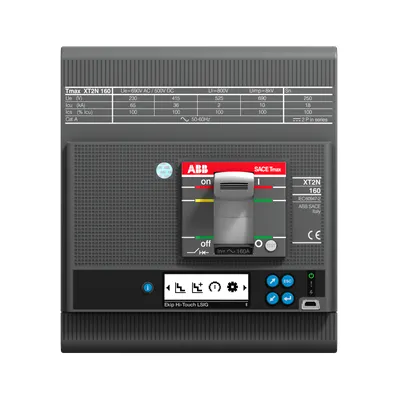

2TFN000218A1001 ABB: XT2H 160 Ekip Touch Measuring LSIG In=40A 4p F F
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT2 ELT
Environmental Product Declaration - EPD
EPD Tmax XT XT2 ELT (CN)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.7 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Environmental Information
Breakers - Packaging disposal information
Customs Tariff Number
85362000
Product Net Width
120.0 mm
Product Net Height
130 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.6 kg
Package Level 1 Width
150 mm
Package Level 1 Height
214 mm
Package Level 1 Depth / Length
130 mm
Package Level 1 Gross Weight
1.7 kg
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
Current Type
AC
Electrical Durability
8000 cycle | 120 cycles per hour
Mechanical Durability
25000 cycle | 240 cycles per hour
Number of Poles
4P
Rated Current (In)
40 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 100 kA | (230 V AC) 100 kA | (240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 65 kA | (500 V AC) 50 kA | (525 V AC) 30 kA | (690 V AC) 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 100 kA | (230 V AC) 100 kA | (240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 65 kA | (500 V AC) 50 kA | (525 V AC) 30 kA | (690 V AC) 15 kA
Rated Uninterrupted Current (Iu)
160 A
Release
Ekip Touch Measuring LSIG
Release Type
EL
Short-Circuit Performance Level
H
Standards
IEC60947-2 | GB/T 14028.2
Sub-type
XT2
Terminal Connection Type
Front
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT2
Instructions and Manuals
Installation Instructions XT2 | Operation and maintenance manual for Ekip Touch Trip Units for SACE Tmax XT2-XT4
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: The 4-pole design with a 40 A rated current and 690 V AC operating voltage provides robust, scalable protection for complex switchgear and panel boards. This configuration ensures selective tripping and minimizes nuisance events, reducing panel downtime in production environments. It is well-suited for distribution panels, machine boards, and automation cabinets where compact footprint and front-terminal wiring speed installation. Feature → Business Impact → Application: The Ekip Touch Measuring LSIG trip unit adds precise current sensing and adjustable protection, improving fault discrimination and operator safety. This capability translates to faster repair cycles and lower maintenance costs in high-demand automation environments. Ideal for new builds or retrofit projects in process industries and manufacturing plants requiring real-time protection data. Feature → Business Impact → Application: With rated service short-circuit breaking capacity up to 100 kA (depending on voltage), the device tolerates power surges encountered in modern industrial networks. This performance supports safer startup sequences and reduces the likelihood of cascading trips in heavy-load scenarios. Feature → Business Impact → Application: Compliance with IEC60947-2 and CE declarations ensures regulatory alignment across global sites, while RoHS and CMRT traceability support responsible sourcing. Engineers can document conformity quickly for audits and customer requirements and avoid costly non-compliance penalties. Feature → Business Impact → Application: Compact dimensions (120 mm wide, 130 mm high, 82.5 mm deep) and a weight of 1.6 kg simplify installation in crowded enclosures and support serviceability. Front-terminal connection aids panel wiring and reduces termination errors during assembly and maintenance.
