ABB 2TFN000301A1001 Moulded Case Circuit Breaker - IEC 60947-2
Part Number: 2TFN000301A1001
Quick Summary
ABB 2TFN000301A1001 Moulded Case Circuit Breaker is a protection device for industrial switchgear. It helps prevent unplanned outages with a robust 4P design and front-terminal mounting. Certified to IEC 60947-2 and GB/T 14028.2 with CE conformity, it supports global compliance. ABB EcoSolutions enables sustainable lifecycle management with disassembly instructions and a design for resource loops. For 690 V AC / 500 V DC operation, 160 A, four poles, and LSIG release, it fits both new builds and retrofits. You also gain predictable performance through high short-circuit withstand capabilities and optimized energy loss. This makes procurement and maintenance more efficient, with clear documentation and ready compatibility for EN/IEC segments.
Product Information
Extended Description

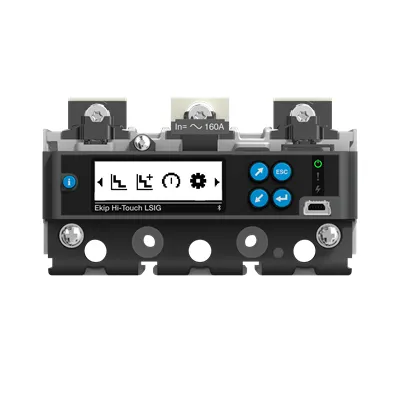

2TFN000301A1001 ABB: C.BREAKER TMAX XT2H 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP Hi-Touch LSIG R 160 A
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions
Disassembly instructions Tmax XT XT2 ELT
Environmental Product Declaration - EPD
EPD Tmax XT XT2 ELT (CN)
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 55.7 %
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Document availability on demand
Environmental Information
Product Environmental Information Tmax XT
Customs Tariff Number
85362000
Product Net Width
120 mm
Product Net Height
130 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.6 kg
Product Name
Moulded Case Circuit Breaker
Product Type
CB
Version
F
Current Type
AC
Electrical Durability
8000 cycle | 120 cycles per hour
Mechanical Durability
25000 cycle | 240 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 10.80 W
Rated Current (In)
160 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC | 500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 100 kA | (230 V AC) 100 kA | (240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 65 kA | (500 V AC) 50 kA | (525 V AC) 30 kA | (690 V AC) 15 kA | (250 V DC) 2 Poles in Series 70 kA | (500 V DC) 3 Poles in Series 70 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 100 kA | (230 V AC) 100 kA | (240 V AC) 100 kA | (380 V AC) 70 kA | (415 V AC) 70 kA | (440 V AC) 65 kA | (500 V AC) 50 kA | (525 V AC) 30 kA | (690 V AC) 15 kA | (250 V DC) 2 Poles in Series 70 kA | (500 V DC) 3 Poles in Series 70 kA
Rated Uninterrupted Current (Iu)
160 A
Release
Ekip Hi-Touch LSIG
Release Type
EL
Short-Circuit Performance Level
H
Standards
IEC 60947-2 | GB/T 14028.2
Sub-type
XT2
Terminal Connection Type
Fixed Circuit-Breakers
Data Sheet, Technical Information
SACE Tmax XT IEC Low voltage molded case circuit-breakers Catalog | SACE Tmax XT IEC TECHNICAL CHARACTERISTICS Low voltage molded case circuit-breakers
Declaration of Conformity - CE
EC Declaration of Conformity Tmax XT2
Instructions and Manuals
Installation Instructions XT2 | Release assembly XT2-XT4 | Operation and maintenance manual for Ekip Touch Trip Units for SACE Tmax XT2-XT4
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Four-pole fixed circuit-breaker with front-terminal terminals and Ekip Hi-Touch LSIG release. Business Impact: Delivers reliable fault isolation with simplified wiring and fast trip resolution, reducing downtime and installation time. Application: Large switchgear panels and distribution boards in manufacturing and process industries. Feature: 690 V AC / 500 V DC operating range and 160 A rated current. Business Impact: Supports broad industrial voltage profiles and high-load applications while maintaining safety margins. Application: Power distribution for motors and drives in conveyors, pumps, and CNC systems. Feature: High Ics and Icu ratings across voltage variants. Business Impact: Provides robust short-circuit protection, enabling safer startup sequences and minimized equipment damage. Application: Medium-voltage motor control centers and protective relays. Feature: Reusable lifecycle data and End Of Life materials guidance (EPD, RoHS/REACH, recyclability). Business Impact: Improves sustainability reporting, reduces total cost of ownership, and supports regulatory compliance. Application: Corporate sustainability programs and green procurement. Feature: ABB EcoSolutions and availability of disassembly instructions. Business Impact: Facilitates safe decommissioning and resource recovery, lowering environmental impact. Application: Plant maintenance and end-of-life planning in refineries and energy facilities.
Get a Quick Quote for a ABB 2TFN000301A1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TFN000301A1001?
Enquire Now
FAQs
This MCCB features fixed circuit-breaker terminals with front access, enabling straightforward panel mounting and wiring. The 4P design simplifies busbar connections in compact switchgear, while the LSIG release provides reliable protection without complex integration. Verified compatibility with XT2 family configurations supports quick upgrades and standardized installations across plants.
Rated current is 160 A with a Rated Operational Voltage of 690 V AC / 500 V DC and an Insulation Voltage of 1000 V. Ics and Icu values reach up to 100 kA in many voltage scenarios, while a shortest clear path to tripping is ensured by the Ekip Hi-Touch LSIG release. Uimp is 8 kV, supporting robust fault withstand capability.
Yes. The model is listed under the XT2 sub-type with the Ekip Hi-Touch LSIG release, aligning with Tmax XT2-XT4 trip unit families. It also leverages ABB EcoSolutions, including disassembly guidance and recyclability targets per EN45555, helping projects meet sustainability and regulatory goals.
The device supports RoHS and REACH declarations, is CE-compliant, and has an Environmental Product Declaration (EPD) for Tmax XT XT2 ELT. Recyclability is quantified at 55.7% per EN45555, and disassembly instructions are provided to facilitate safe end-of-life handling.
A complete data sheet and technical catalog are provided, along with installation instructions for XT2, release assembly guidance for XT2-XT4, and operation/maintenance manuals for Ekip Touch trip units. CE DoC is available, and DoC and conformity statements support regulatory audits and supplier qualification.
