2TKA00000124
Part Number: 2TKA00000124
Product Information
Extended Description

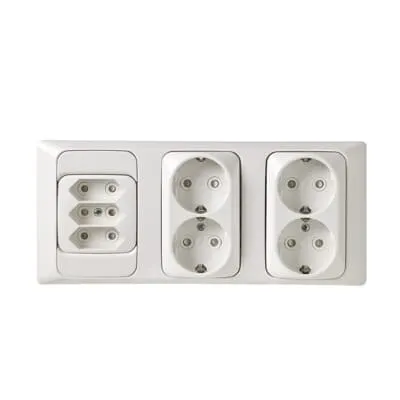

2TKA00000124 ABB: The socket combination includes: 2 x 2-piece earthed socket, 3-piece european socket, 100mm / 85mm adapter and 3-piece cover plate 100mm. Not pre-connected. IP21 on a smooth surface. Delivery in a plastic bag labeled.
Mounting Type
Flush mounted (plaster)
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP21
Number of Phases
1
Number of Active Pin Terminals
0
Number of Gangs
7
Connection Type
Push-In
Socket Outlet Type
Protective Contact (SCHUKO)
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 ... 50 Hz
Design Range
Jussi
Surface Finishing
Untreated | Matt
Material
Plastic, Thermoplastic
Legend
Without imprint
Label Space Provided
No
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
100 mm
Product Net Height
45 mm
Product Net Depth / Length
228 mm
Product Net Weight
0.275 kg
Built-In Depth (t2)
23 mm
E-Number (Norway)
1517997
E-Number (Sweden)
1815117
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
9AKK10103A2378
ETIM 9
EC000125 - Socket outlet
