2TKA00000133
Part Number: 2TKA00000133
Product Information
Extended Description

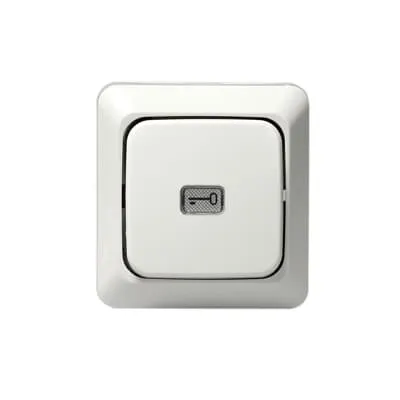

2TKA00000133 ABB: Surface mounting push switch with screwless terminals and rocker with clip-on fastening. The terminals are for max 2 rigid wires.
Mounting Type
Surface Mounted
Type of Fastening
Screw
Degree of Protection
IP21
Contacts Configuration
1 NO, 0 NC
Number of Poles
1P
Number of Rocker Switches
1
Actuator Type
Push button
Connection Type
Plug Clamp
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Number of Contacts CO
0
Number of Contacts NC
0
Number of Contacts NO
2
Design Range
Jussi
Surface Finishing
Untreated | Matt
Material
Plastic, Thermoplastic
Legend
None
Label Space Provided
No
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
72 mm
Product Net Height
34 mm
Product Net Depth / Length
72 mm
Product Net Weight
0.0708 kg
Built-In Depth (t2)
18 mm
Environmental Product Declaration - EPD
EPD for Push Switches
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Switches ENG
ETIM 9
EC000029 - Push button
