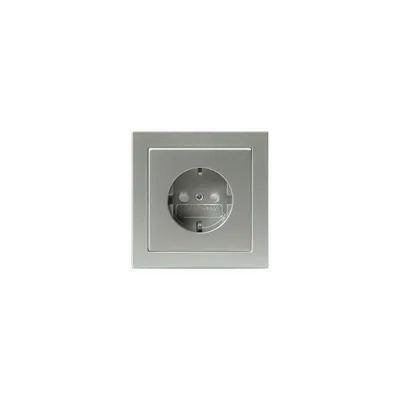

2TKA00000439
Part Number: 2TKA00000439
Product Information
Extended Description
2TKA00000439 ABB: There are terminals for each contact of the socket outlet. No 2 X-terminals. The terminals are for max 2 rigid wires.
Mounting Type
Flush mounted (plaster)
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP21
Number of Phases
1
Number of Active Pin Terminals
0
Number of Gangs
1
Connection Type
Push-In
Socket Outlet Type
Protective Contact (SCHUKO)
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 ... 50 Hz
Design Range
Impressivo
Surface Finishing
Lacquered | Matt
Material
Plastic, Thermoplastic
Legend
Without imprint
Label Space Provided
No
RAL Number
RAL 9006 - White Aluminium
Color
Aluminium
Product Net Width
85 mm
Product Net Height
45 mm
Product Net Depth / Length
85 mm
Product Net Weight
0.086 kg
Built-In Depth (t2)
28 mm
Dimension Diagram
Dimension Diagram (.PDF) [XX] 20EUJ-8x
E-Number (Finland)
2506007
E-Number (Norway)
1503544
E-Number (Sweden)
1816577
Environmental Product Declaration - EPD
EPD for Single socket outlets
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e4570899-35a4-4dee-b140-658a45689415 Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Single Socket outlets ENG
ETIM 9
EC000125 - Socket outlet
