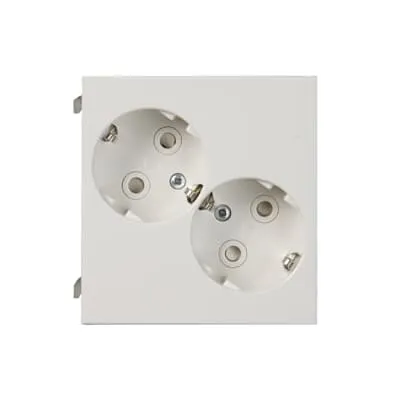

2TKA00000809
Part Number: 2TKA00000809
Product Information
Extended Description
2TKA00000809 ABB: The socket-outlet is approved for extending a branch circuit with solid and rigid wires. When chaining several AUD10-socket-outlets, the recommended length of intermediate cables is 120 mm. The end piece package AUD30 or AUD31 is required for each socket group. The depth of box is 45 mm.
Mounting Type
Wall duct
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Number of Phases
1
Number of Active Pin Terminals
0
Number of Gangs
2
Connection Type
Push-In
Socket Outlet Type
Protective Contact (SCHUKO)
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 ... 50 Hz
Design Range
Impressivo
Surface Finishing
Untreated | Matt
Material
Plastic, Thermoplastic
Legend
Without imprint
Label Space Provided
No
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
45 mm
Product Net Height
85 mm
Product Net Depth / Length
80 mm
Product Net Weight
0.086 kg
Dimension Diagram
Dimension Diagram (.PDF) [XX] AUD10-xx
E-Number (Finland)
1406300
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e4570899-35a4-4dee-b140-658a45689415 Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
9AKK10103A2378
ETIM 9
EC000125 - Socket outlet
