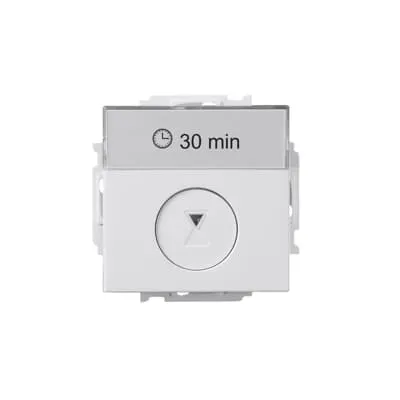

ABB 2TKA00000875 Countdown timer - IP21
Part Number: 2TKA00000875
Quick Summary
Countdown timer ABB 2TKA00000875 is a precise time control device for industrial equipment on production lines. Many operators struggle with drifted runtimes and unplanned downtime caused by unreliable timing. It offers CE conformity, RoHS/REACH compliance, and IP21 protection, ensuring safe operation in typical workshop environments. The compact Impressivo design, flush-mounted installation, and screw-terminal wiring simplify retrofits and new builds alike, while the 230 V supply and 15 to 480 minute range cover common machine and lighting control tasks. This makes it a practical choice for engineers seeking dependable timing with minimal maintenance and clear, center-plate labeling for quick status checks.
Product Information
Extended Description
2TKA00000875 ABB: Fixed time options: 15min, 30min, 1h, 2h, 4h and 8h. Exchangeable labels with the time options to mark center plate with selected time. 230 VAC, 50Hz, 0 - 40C, IP21, 2-pole wiring. 10A resistiv load (2300W), 2AX-load (e.g. fluorescent lamp). Screw terminals max 2,5mm2. Signal light when active._x000D_
Instructions and Manuals
Instruction T210-xxx CTI1.440
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP21
Minimum Switching Time
15 minute [unit of time]
Time Range
15 ... 480_MIN$
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Current (In)
10 A
Frequency (f)
50 … 50 Hz
Power Watt
2300 W
Number of Contacts NO
1
Design Range
Impressivo
Surface Finishing
Surface protection: Untreated | Surface finishing: Glossy
Material
Plastic | Thermoplastic
RAL Number
RAL 9016 - Traffic White
Color
White
Product Net Width
0.071 m
Product Net Height
0.034 m
Product Net Depth / Length
0.071 m
Product Net Weight
0.077 kg
Built-In Depth (t2)
18 mm
Dimension Diagram
Dimension Diagram (.PDF) [XX] T210-8x
E-Number (Finland)
2619350
E-Number (Norway)
1416717
E-Number (Sweden)
1815081
Environmental Product Declaration - EPD
EPD for Timer
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
5aa38883-8972-43e9-a03e-8752c578104c Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Timer ENG
ETIM 9
EC001594 - Time switch clock for domestic switching devices
Feature: Time range and center-plate labeling options. Business Impact: Delivers consistent cycle timing across shifts, reducing setup errors and downtime; labeling enhances operator clarity to prevent mis-timing. Application: Batch processing, lighting control, and sequence starts in manufacturing lines. Feature: Electrical compatibility. Business Impact: 230 V, 50 Hz operation supports standard mains in most facilities, enabling quick integration without adapters or rewiring. Application: Control panels and machine starters across workshops. Feature: IP21 protection and durable housing. Business Impact: Better protection against interior dust and incidental moisture, lowering maintenance and replacement costs. Application: Indoor panel installations in production environments. Feature: Flush mounting with screw terminals. Business Impact: Space-saving footprint and robust, easy field wiring; faster installation reduces commissioning time. Application: New builds and retrofits in compact control enclosures. Feature: Built-in depth and compact form factor. Business Impact: Saves panel space and allows easier routing of cables in crowded panels. Application: Modern machine bays and lighting control nodes. Feature: Design and materials details (Impressivo, RAL 9016 White). Business Impact: Aesthetically pleasing, consistent panel appearance and easy-to-clean surfaces; supports standardized control aesthetics. Application: Front-of-panel integrations in industrial settings. Feature: Regulatory and sustainability declarations (CE, RoHS, REACH, EPD). Business Impact: Ensures compliance during audits and supports sustainability reporting. Application: Procurement and compliance workflows for regulated environments.
Get a Quick Quote for a ABB 2TKA00000875
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00000875?
Enquire Now
FAQs
The timer is designed for flush-mounted installation with screw terminals rated for up to 2.5 mm2 conductors. It uses 230 V, 50 Hz mains and provides a single normally open contact (1 NO). This simplifies panel design and reduces wiring complexity, making it ideal for standard control cabinets and retrofit projects.
The device offers fixed-time options of 15 minutes, 30 minutes, 1 hour, 2 hours, 4 hours, and 8 hours, and a general time range spanning 15 to 480 minutes. This enables precise control for diverse processes from short interrupt cycles to longer machine run times.
Yes. With 230 V operation, IP21 protection, and a 10 A load rating, it is well-suited for indoor lighting control and other line-powered loads in factories. The center-plate labeling option helps operators quickly verify the current time setting during maintenance or shift changes.
The timer carries CE conformity and RoHS/REACH declarations, plus EPD and SCIP-related considerations. These certifications support regulatory compliance and sustainability reporting, aiding audit readiness and supplier requirements.
The device is battery-free and designed for long service life with minimal maintenance. Precise timing reduces wasted energy and prevents overrun or premature starts, delivering measurable savings in energy use and improved process reliability, which translates to lower downtime costs and faster payback on control-panel upgrades.
