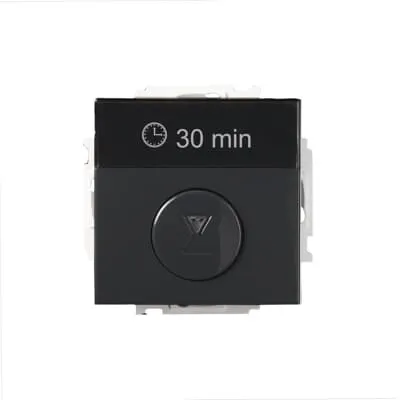

ABB 2TKA00000876 Countdown timer - IP21 protection
Part Number: 2TKA00000876
Quick Summary
Countdown timer ABB 2TKA00000876 provides precise time-based control for industrial automation tasks, from lighting to fans in control panels. This device helps you avoid overrun, under-timing, and manual reset headaches by delivering repeatable dwell times. Many panel builders struggle with labeling accuracy and installation fit, especially in compact enclosures; the exchangeable center-plate labels and screw terminals simplify commissioning. The timer supports CE conformity, RoHS and REACH declarations, along with SCIP and EPD documentation, ensuring regulatory alignment in regulated environments. Its Impressivo design, IP21 protection, and flush-mount form factor offer durable, space-saving integration in new panels or retrofit projects. By pairing 230 V power with a 10 A load rating, it delivers reliable, scalable timing for industrial automation projects.
Product Information
Extended Description
2TKA00000876 ABB: Fixed time options: 15min, 30min, 1h, 2h, 4h and 8h. Exchangeable labels with the time options to mark center plate with selected time. 230 VAC, 50Hz, 0 - 40C, IP21, 2-pole wiring. 10A resistiv load (2300W), 2AX-load (e.g. fluorescent lamp). Screw terminals max 2,5mm2. Signal light when active.
Instructions and Manuals
Instruction T210-xxx CTI1.440
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP21
Minimum Switching Time
15 minute [unit of time]
Time Range
15 ... 480_MIN$
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Current (In)
10 A
Frequency (f)
50 … 50 Hz
Power Watt
2300 W
Number of Contacts NO
1
Design Range
Impressivo
Surface Finishing
Surface protection: Untreated | Surface finishing: Glossy
Material
Plastic | Thermoplastic
RAL Number
RAL 7021 - Black Grey
Color
Anthracite
Product Net Width
0.071 m
Product Net Height
0.034 m
Product Net Depth / Length
0.071 m
Product Net Weight
0.077 kg
Built-In Depth (t2)
18 mm
Dimension Diagram
Dimension Diagram (.PDF) [XX] T210-8x
E-Number (Finland)
2619351
E-Number (Norway)
1416712
E-Number (Sweden)
1815082
Environmental Product Declaration - EPD
EPD for Timer
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
5aa38883-8972-43e9-a03e-8752c578104c Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Timer ENG
ETIM 9
EC001594 - Time switch clock for domestic switching devices
Time range versatility drives precise control for energy management and workflow sequencing, reducing energy waste and extending equipment life. Feature → Business Impact → Application: The 15–480 minute range allows accurate scheduling of lighting, fans, and small equipment in process lines, improving energy efficiency and process timing. Application: industrial lighting control and small-machine dwell cycles. Feature → Business Impact → Application: Exchangeable time labels on the center plate improve operator clarity and reduce setup errors during changeovers. Application: retrofit projects and multi-program panels where quick reconfiguration is needed. Feature → Business Impact → Application: 230 V, 50 Hz operation with 10 A resistive (2300 W) and 2 A for select loads enables versatile control of lighting and auxiliary devices. Application: panel mounting alongside other automation components. Feature → Business Impact → Application: IP21 protection and flush-mounted, screw-fastened design save space, improve safety, and simplify installation in control cabinets. Application: compact enclosures and new-build panels. Feature → Business Impact → Application: 18 mm built-in depth and 2.5 mm2 screw terminals speed wiring and reduces panel depth constraints. Application: dense control panels and retrofit projects. This combination supports compliance, reduces maintenance costs, and accelerates commissioning in industrial automation projects.
Get a Quick Quote for a ABB 2TKA00000876
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00000876?
Enquire Now
FAQs
The timer is designed for flush mounting with screw fastening. It uses standard 230 V wiring and accepts screw terminals up to 2.5 mm2, enabling straightforward panel integration in compact control cabinets.
It operates at 230 V, 50 Hz, with a rated current of 10 A. It supports up to 2300 W for resistive loads and is suitable for small inductive applications, managed through a single NO contact.
Yes. It features IP21 protection and carries CE conformity, RoHS, REACH, SCIP, and EPD documentation, aligning with common industrial and environmental regulatory requirements.
Ideal for control of lighting, fans, and small equipment within control panels. The 15–480 minute range and exchangeable center-labels support flexible scheduling and clear operator guidance in process areas.
Its compact, stylish Impressivo design, 18 mm built-in depth, and durable 230 V/10 A capability reduce installation time and spare parts needs, while the exchangeable labels minimize rework and improve commissioning efficiency, delivering faster time-to-value.
