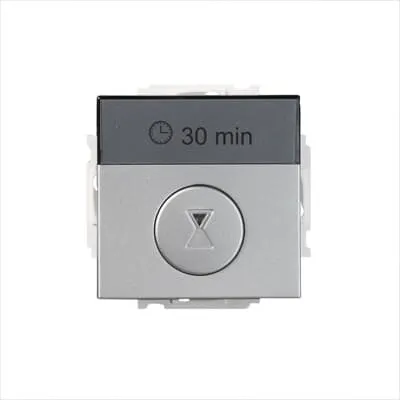

ABB 2TKA00000877 Countdown Timer - IP21, CE Declaration
Part Number: 2TKA00000877
Quick Summary
Countdown timer 2TKA00000877 provides precise timed switching for automation and control panels. Engineers often struggle with compact enclosures, labeling accuracy, and reliable operation under load; this timer addresses those challenges with a durable, flush-mounted design and exchangeable time labels. It offers IP21 protection for indoor use, CE conformity for European markets, and RoHS/REACH compliance for safe, sustainable installations. The combination of 230 V operation, a 10 A load rating, and a 15 to 480 minute range enables fast deployment and consistent timing in industrial automation projects, reducing downtime and improving process reliability. This device also supports straightforward installation and integration with standard panel workflows, delivering tangible business value through predictable timing and easy maintenance.
Product Information
Extended Description
2TKA00000877 ABB: Fixed time options: 15min, 30min, 1h, 2h, 4h and 8h. Exchangeable labels with the time options to mark center plate with selected time. 230 VAC, 50Hz, 0 - 40C, IP21, 2-pole wiring. 10A resistiv load (2300W), 2AX-load (e.g. fluorescent lamp). Screw terminals max 2,5mm2. Signal light when active.
Instructions and Manuals
Instruction T210-xxx CTI1.440
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP21
Minimum Switching Time
15 minute [unit of time]
Time Range
15 ... 480_MIN$
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Current (In)
10 A
Frequency (f)
50 … 50 Hz
Power Watt
2300 W
Number of Contacts NO
1
Design Range
Impressivo
Surface Finishing
Surface protection: Untreated | Surface finishing: Glossy
Material
Plastic | Thermoplastic
RAL Number
RAL 9006 - White Aluminium
Color
Aluminium
Product Net Width
0.071 m
Product Net Height
0.034 m
Product Net Depth / Length
0.071 m
Product Net Weight
0.077 kg
Built-In Depth (t2)
18 mm
Dimension Diagram
Dimension Diagram (.PDF) [XX] T210-8x
E-Number (Finland)
2619352
E-Number (Norway)
1416715
E-Number (Sweden)
1815083
Environmental Product Declaration - EPD
EPD for Timer
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
5aa38883-8972-43e9-a03e-8752c578104c Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Timer ENG
ETIM 9
EC001594 - Time switch clock for domestic switching devices
Feature: Fixed time options from 15 minutes to 8 hours. Business Impact: Enables precise control of cycles and processes, reducing overrun and energy waste. Application: Lighting control and machine interlocks in automation panels. Feature: 230 VAC, 50 Hz, 10 A, 2300 W load capacity with 1 NO contact. Business Impact: Handles common industrial loads with a single, reliable timer module, lowering component count. Application: Control of resistive loads and lighting in control cabinets. Feature: Flush mounting with screw fastening. Business Impact: Simplifies installation and minimizes panel intrusion, speeding up commissioning. Application: Wall or panel-mounted installations in machine zones. Feature: Screw terminals up to 2.5 mm2. Business Impact: Flexible wiring with secure connections, reducing setup errors. Application: Neat, maintainable panel wiring and future-proofing. Feature: Exchangeable labels for time options. Business Impact: Improves operator clarity and reduces mis-timing on site. Application: Labeling center plate with selected interval in industrial control schemes. Feature: Signal light when active. Business Impact: Immediate visual feedback for operators and maintenance teams, lowering monitoring effort. Application: Real-time status indication in control panels. Feature: IP21 protection; RoHS and REACH compliance; CE declaration. Business Impact: Ensures compliance, safety, and sustainable disposal, minimizing regulatory risk. Application: European installations and environmentally responsible projects. Feature: Compact, plastic Thermoplastic construction with Impressivo design. Business Impact: Lightweight, durable housing suitable for dense panel layouts. Application: New or retrofit installations in automation and control systems.
Get a Quick Quote for a ABB 2TKA00000877
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00000877?
Enquire Now
FAQs
The timer uses flush mounting with screw fastenings and supports 2-pole wiring. Connect the 230 V supply to the device via the screw terminals rated for up to 2.5 mm2. A built-in indicator lights when active, and you can use the exchangeable time labels to reflect the selected interval for clear operator communication.
The unit operates at 230 V AC, 50 Hz, with a rated current of 10 A and a maximum load of 2300 W for resistive devices. It features one normally open contact and is designed for indoor use with IP21 protection, benefiting control panels and lighting applications without battery dependencies.
Yes. The timer carries a CE declaration and RoHS compliance, along with REACH documentation. It is also listed with SCIP and WEEE considerations, ensuring regulatory alignment for European installations and sustainable end-of-life handling.
Typical uses include indoor lighting control, process interlocks, and timed sequence control within automation panels. With a 15 to 480 minute range, a compact flush-mount design, and exchangeable time labels, it enables reliable sequencing in machine operations and energy-saving control strategies in control cabinets.
Because the device requires no batteries, maintenance is minimal. The built-in LED indicator aids status monitoring, and the screw-terminal connections promote reliable wiring. The IP21 rating and robust plastic body support long service life in standard indoor environments, helping to lower total cost of ownership over time.
