2TKA00000912
Part Number: 2TKA00000912
Product Information
Extended Description

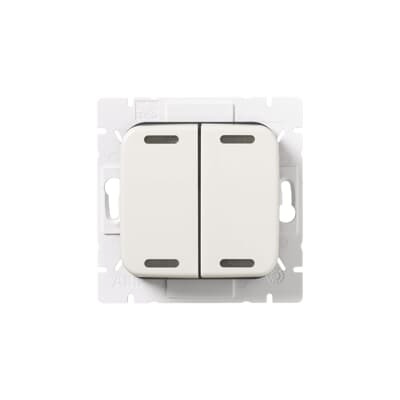

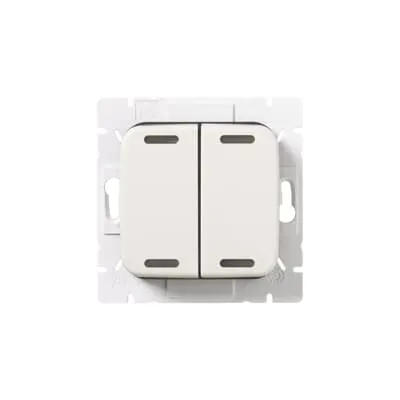

2TKA00000912 ABB: 4/2-gang push button panel to control bistable relays or electronic control systems. Load capacity 1A AC/DC. White LED-light with adjustable illumination. Installation on surface or on top of a standard flush mounting box.
Instructions and Manuals
Catalog (.PDF) [EN] Wiring Accessories Impressivo and Jussi
Mounting Type
Flush mounted (plaster)
Type of Fastening
Screw
Degree of Protection
IP20
Data Sheet, Technical Information
Catalog (.PDF) [EN] Wiring Accessories Impressivo and Jussi
Contacts Configuration
4 NO, 0 NC
Number of Poles
1P
Number of Gangs
1
Number of Rocker Switches
4
Actuator Type
Push button
Connection Type
Screw
Number of Batteries
0
Rated Voltage (Ur)
24 V
Rated Current (In)
1 A
Number of Contacts CO
0
Number of Contacts NC
4
Number of Contacts NO
0
Design Range
Jussi
Surface Finishing
Untreated | Glossy
Material
Plastic, Thermoplastic
Legend
None
Label Space Provided
No
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
20 mm
Product Net Weight
0.042 kg
Built-In Depth (t2)
21 mm
E-Number (Finland)
7005520
E-Number (Norway)
1414514
E-Number (Sweden)
1819024
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
5d25f7af-a833-4b80-b40d-81de74f28b19 Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Signal EMC products ENG
ETIM 9
EC000029 - Push button
