ABB 2TKA00001741 Timer Electronic White - Jussi
Part Number: 2TKA00001741
Quick Summary
Timer Electronic White ABB is a compact timer kit that precisely controls loads in control panels and small automation cabinets. Engineers often struggle with unpredictable dwell times and awkward wiring inside cramped enclosures, leading to workflow disruptions. This ABB Jussi timer kit delivers robust performance with CE, RoHS, REACH, and IP21 protection, ensuring safe operation and regulatory compliance in harsh environments. The solution combines a dedicated timer, a Schuko socket outlet, and a mounting frame to streamline installation, labeling, and maintenance. By focusing on modular design, it supports faster commissioning, clearer fault tracing, and reduced panel height, delivering tangible business value for panel builders and system integrators alike.
Product Information
Extended Description

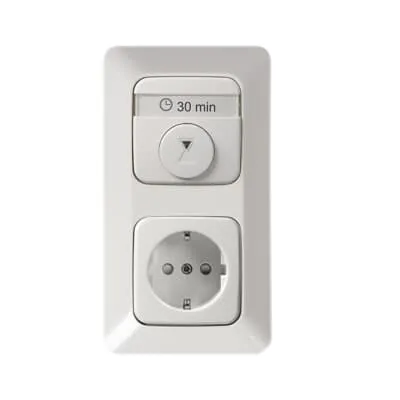

2TKA00001741 ABB: Timer kit include Jussi-timer, single schuko socket outlet and installation frame._x000D_
Fixed time options: 15min, 30min, 1h, 2h, 4h and 8h. Exchangeable labels with the time options to mark center plate with selected time. _x000D_
230 VAC_x000D_
50Hz_x000D_
0 - 40C_x000D_
IP21_x000D_
2-pole wiring_x000D_
10A resistiv load (2300W)_x000D_
2AX-load (e.g. fluorescent lamp)_x000D_
Screw terminals max 2,5mm2_x000D_
Signal light when active
Mounting Type
Flush-mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP21
Minimum Switching Time
15 minute [unit of time]
Time Range
15 ... 480_MIN$
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Current (In)
10 A
Frequency (f)
50 … 50 Hz
Power Watt
2300 W
Number of Contacts NO
1
Design Range
Jussi
Surface Finishing
Surface protection: Untreated | Surface finishing: Matt
Material
Plastic | Thermoplastic
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
0.156 m
Product Net Height
0.085 m
Product Net Depth / Length
0.034 m
Product Net Weight
0.156 kg
E-Number (Norway)
1414511
E-Number (Sweden)
1815085
Environmental Product Declaration - EPD
EPD for Timer kits with socket outlet
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
5aa38883-8972-43e9-a03e-8752c578104c Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Timer ENG
ETIM 9
EC001594 - Time switch clock for domestic switching devices
Feature → Business Impact → Application. The Jussi timer in the kit provides fixed time options from 15 minutes up to 8 hours, enabling precise control over loads and reducing energy waste in production lines and lighting circuits. This translates to measurable energy savings and improved process reliability in automated environments where predictable on/off cycles are critical. The 230 V, 50 Hz rating and 10 A current capacity cover common resistive and NO-load scenarios, enabling electricians to deploy the unit for general purpose control in machinery bays, workshops, and facilities. The IP21 protection rating protects against incidental contact and splash exposure, minimizing maintenance downtime in manufacturing floors and electrical rooms. Flush-mounted installation with screw fastening simplifies retrofits and new builds, saving space while ensuring secure wiring with 2-pole connections and 2.5 mm2 terminals for dependable connections. Exchangeable center plate labels speed setup and changeovers, supporting quick commissioning and reduced training time. The kit’s RoHS, REACH, and SCIP declarations help meet sustainability and compliance requirements for modern industrial projects, while the CE DoC reinforces conformity during audits. These features collectively improve efficiency, reduce total cost of ownership, and support scalable control strategies for small to mid-sized automation projects.
Get a Quick Quote for a ABB 2TKA00001741
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00001741?
Enquire Now
FAQs
The timer kit is designed for flush-mounted installation with a screw-fastened mounting frame. It uses 2-pole wiring and 2.5 mm2 screw terminals, supporting a single NO contact and 230 V supply. It fits standard control panels and can be retrofitted into existing enclosures with minimal space, streamlining wiring and reducing enclosure height.
Key specs include 230 V rated voltage, 50 Hz frequency, 10 A rated current, and up to 2300 W load capacity. Time range is 15 to 480 minutes with fixed options, and IP21 protection provides basic enclosure protection. The unit supports resistive and lighting loads via 1 NO contact, ensuring suitable performance for common automation tasks.
Yes. With 10 A rated current, 230 V operation, and a compact flush-mounted design, the timer is well-suited for small machines, conveyors, and lighting control circuits. The IP21 rating makes it appropriate for indoor panel environments, while exchangeable labels simplify setup for different applications and shift changes.
The timer kit meets CE declaration of conformity and RoHS compliance, with REACH declarations and SCIP reporting. It is also associated with WEEE categorization for small equipment, and an Environmental Product Declaration is available for timer kits with socket outlets, supporting sustainability reporting and compliance requirements.
The kit reduces energy usage through predictable time switching and minimizes maintenance by consolidating timer, outlet, and frame in one unit. Quick installation and label exchange shorten commissioning and downtimes, while compliance features reduce audit risk. Overall, you gain faster project delivery, lower wiring complexity, and long-term cost savings from reliable, standards-driven components.
