2TKA00003832
Part Number: 2TKA00003832
Product Information
Extended Description

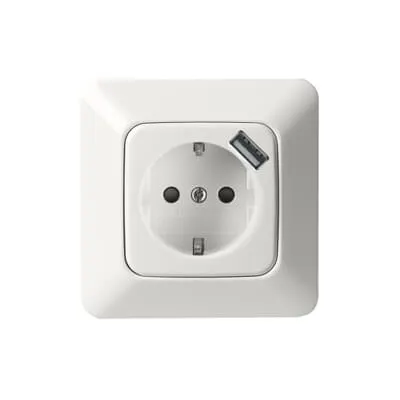

2TKA00003832 ABB: The socket outlet has an integrated USB charger 5V/0,7A with electronic short-circuit and overload protection. Power dissipation 0,1W. Compatible with USB devices, iPod and iPhone. The Schuko socket outlet is 16A/250V. There are screwless terminals for each contact of the socket outlet. The socket outlet insert has shutters. The terminals are for max 2 rigid wires. No X-terminals.
Mounting Type
Flush Mounted
Type of Fastening
Screw
Degree of Protection
IP20
Number of Gangs
1
Connection Type
Plug Clamp
Socket Outlet Type
Protective Contact (SCHUKO)
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Maximum Switching Current
Fluorescent Lamps 16 A
Design Range
Impressivo
Surface Finishing
Untreated, Matt
Material
Plastic, Thermoplastic
Label Space Provided
No
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
85.000 mm
Product Net Height
0.085 m
Product Net Depth / Length
0.085 m
Product Net Weight
0.18 kg
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
ETIM 9
EC000125 - Socket outlet
