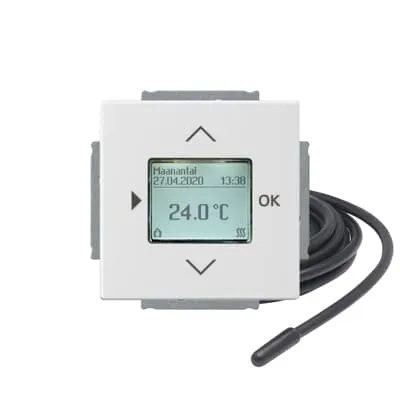

ABB 2TKA00004035 Combination Thermostat - IP21
Part Number: 2TKA00004035
Quick Summary
ABB 2TKA00004035 combination thermostat controls heating in industrial enclosures and HVAC zones. For engineers frustrated by complex wiring and hard-to-change setpoints, this model offers pre-programmed defaults and clear external control options. It carries CE conformity, RoHS/REACH compliance, and IP21 protection, supporting safe operation in controlled environments. With compact design for industrial automation and a 5 to 35 °C measuring range, it helps optimize energy use and maintenance. Designed for manufacturing floors, electrical cabinets, and process rooms, it integrates with external control wiring and supports multiple programmed scenarios. By reducing standby power and simplifying configuration, it delivers faster deployment, lower total cost of ownership, and improved process stability.
Product Information
Extended Description
2TKA00004035 ABB: Thermostat with low insert (20 mm mounting depth) meeting the Ecodesign requirements. The thermostat is pre-programmed. Rated voltage 230 V AC ± 10% 50 Hz
Output 1 no and connectors 1.5 mm² to 4 mm²
Switching current 250 V AC / 16 (2) A, protection class II and protection class IP21.
Operating temperature 0 ° C to 35 ° C and storage temperature -20 ° C to 70 ° C
Clock Accuracy (at 20 ° C) <+/- 0.5 sec / min
Power consumption (standby) <0.05 W
Floor sensor NTC 10kΩ @ 25˚C and external control (EXT connector) 230V AC / 10µA (same phase).
Instructions and Manuals
Manual (.PDF) [XX] Combination thermostat TC16-20-xx
Degree of Protection
IP21
Temperature Class Default
I
Data Sheet, Technical Information
Installation instruction TC16-20-xx
Measuring Range
5 … 35 °C
Number of Outputs
Heater 1 | Cooler 0
Number of Switching Programs
7
Operating Mode
Button
Device Clock Interval
Week
Connection Type
Three-Four Wired
Contact Type
Normally Open (NO)
Sensor Type
Resistance sensor
Power Consumption (@Pcons)
Standby 0.05 W
Power Supply Type
External
Design Range
Impressivo
RAL Number
RAL 9016 - Traffic White
Color
White
Product Net Width
0.085 m
Product Net Height
0.038 m
Product Net Depth / Length
0.085 m
Product Net Weight
0.216 kg
E-Number (Finland)
2619401
E-Number (Norway)
5469031
E-Number (Sweden)
8580563
Environmental Product Declaration - EPD
EPD for Combination thermostat
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
954bed9e-4a92-4f96-a708-5d74768ada1b Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat ENG | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat FI | CE Declaration of conformity TB16xx, TC16xx, TF16xx Thermostat SWE
ETIM 9
EC011309 - Room clock thermostat
Feature: Pre-programmed thermostat with seven switching programs and external 230 V control. Business Impact: Quickly deploy reliable temperature control with minimal commissioning time, reducing field wiring errors. Application: panel cabinets, machine rooms, and process zones in industrial automation where stable heat management matters. Feature: One heater output (NO) and a three-four wired connection. Business Impact: Simplifies wiring diagrams, lowers misconnection risk, and enables straightforward integration into existing control circuits. Application: compact control panels and machine interfaces requiring single-point heat control. Feature: IP21 protection and a low insertion depth of 20 mm. Business Impact: Suitable for indoor enclosures with limited mounting space, improving durability in clean room-like environments. Application: electrical gear enclosures in factory floors and production lines. Feature: External control option and resistance sensor (NTC 10kΩ). Business Impact: Improves wiring flexibility and sensor reliability, enhancing remote adjustment capabilities and long-term stability. Application: climate control in automated systems with external sensor integration. Feature: Standby power of 0.05 W and RoHS/REACH/WEEE compliance. Business Impact: Reduces energy consumption in idle periods and supports sustainable, regulator-ready installations. Application: energy-conscious industrial installations and regions with strict environmental requirements. Feature: Design Impressivo with RAL 9016 white finish. Business Impact: Delivers a professional, finish-matched look to modern control panels, easing maintenance and asset management. Application: any ABB Impressivo powered panel environment in automation and control systems.
Get a Quick Quote for a ABB 2TKA00004035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00004035?
Enquire Now
FAQs
The thermostat uses a Three-Four wired connection with external 230 V AC power. It provides a single normally open heater output and accepts conductors up to 4 mm². For installation, mount with a 20 mm depth and connect the EXT wiring to enable external control on the same phase. Ensure enclosure IP21 suitability and proper cable routing.
Key specs include rated voltage 230 V AC ±10% at 50 Hz, measuring range 5–35 °C, one heater output (NO), seven switching programs, external control via EXT connector, resistance sensor 10 kΩ (NTC), standby power 0.05 W, and IP21 protection. The device operates with external power supply and supports Week clock intervals for scheduling.
Yes, the device is IP21 rated, making it suitable for indoor enclosure environments where splash protection is not a primary concern. It is designed for controlled industrial spaces, electrical cabinets, and process areas. It is not intended for outdoor or explosion-hazard locations, and it carries CE, RoHS, and REACH compliance for safe indoor operation.
The thermostat is covered by CE declarations of conformity for TB16xx, TC16xx, and TF16xx series, along with RoHS and REACH declarations. It also references SCIP and WEEE classifications, an EPD for the combination thermostat, and ETIM 9 classification EC011309 for room clock thermostat, ensuring regulatory alignment.
The device reduces total cost of ownership through very low standby power (0.05 W), pre-programmed multiple switching programs, and easy external control, which lowers commissioning time and ongoing maintenance costs. Energy efficiency, compact mounting, and standardized certifications also reduce downtime and improve process stability in automated manufacturing environments.
