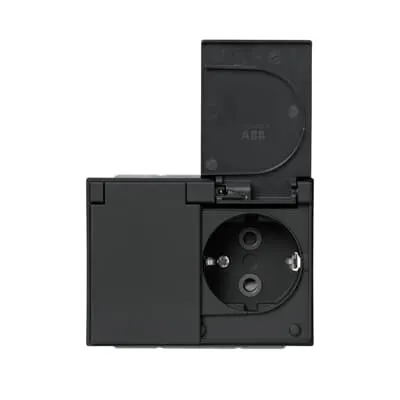

2TKA00004103
Part Number: 2TKA00004103
Product Information
Extended Description
2TKA00004103 ABB: There are terminals for each contact of the socket outlet for max 4 rigid wires. No X-terminals. The socket outlet insert without the cover plate is screen-protected. Assemly on smooth surface IP21 and with seal 2464 on rough surface IP44.
Instructions and Manuals
Catalog (.PDF) [EN] Wiring Accessories Impressivo and Jussi
Mounting Type
Flush mounted (plaster)
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP21
Data Sheet, Technical Information
Catalog (.PDF) [EN] Wiring Accessories Impressivo and Jussi
Number of Phases
1
Number of Gangs
2
Connection Type
Push-In
Socket Outlet Type
Protective Contact (SCHUKO)
Protection Cap Type
Hinged Lid
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 ... 50 Hz
Design Range
Impressivo
Surface Finishing
Lacquered | Matt
Material
Plastic, Thermoplastic
Legend
Without imprint
Label Space Provided
No
RAL Number
RAL 9005 - Jet Black
Color
Black
Product Net Width
71.000 mm
Product Net Height
48.000 mm
Product Net Depth / Length
71.000 mm
Product Net Weight
0.098 kg
Built-In Depth (t2)
18 mm
Dimension Diagram
Dimension Diagram (.PDF) [XX] 302EUCK-xx
E-Number (Finland)
2516115
E-Number (Norway)
1514383
E-Number (Sweden)
1815298
Environmental Product Declaration - EPD
EPD for Shuttered Socket Outlets
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
9AKK10103A2378
ETIM 9
EC000125 - Socket outlet
