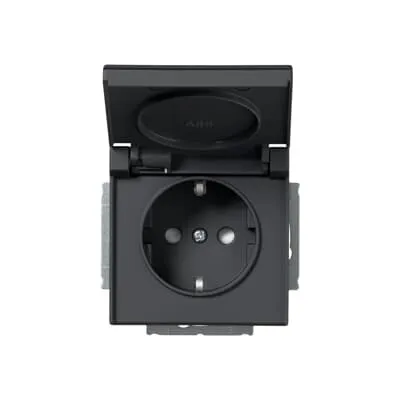

2TKA00004104
Part Number: 2TKA00004104
Product Information
Extended Description
2TKA00004104 ABB: There are terminals for each contact of the socket outlet. No 2 X-terminals. The terminals are for max 2 rigid wires.
Instructions and Manuals
Catalog (.PDF) [EN] Wiring Accessories Impressivo and Jussi
Mounting Type
Flush mounted (plaster)
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP21
Data Sheet, Technical Information
Catalog (.PDF) [EN] Wiring Accessories Impressivo and Jussi
Number of Phases
1
Number of Gangs
1
Connection Type
Push-In
Socket Outlet Type
Protective Contact (SCHUKO)
Protection Cap Type
Hinged Lid
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 ... 50 Hz
Design Range
Impressivo
Surface Finishing
Lacquered | Matt
Material
Plastic, Thermoplastic
Legend
Without imprint
Label Space Provided
No
RAL Number
RAL 9005 - Jet Black
Color
Black
Product Net Width
71.000 mm
Product Net Height
45.000 mm
Product Net Depth / Length
71.000 mm
Product Net Weight
0.079 kg
Built-In Depth (t2)
28 mm
Dimension Diagram
Dimension Diagram (.PDF) [XX] 20EUCK-8x
E-Number (Finland)
2506030
E-Number (Norway)
1514384
E-Number (Sweden)
1815300
Environmental Product Declaration - EPD
EPD for Single socket outlets
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Single Socket outlets ENG
ETIM 9
EC000125 - Socket outlet
