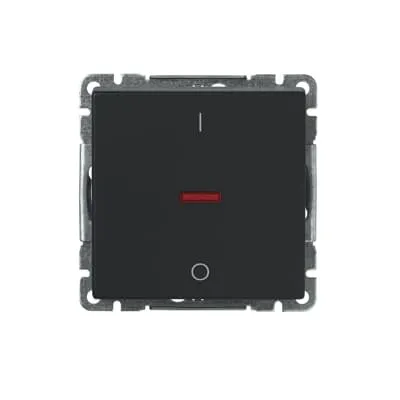

ABB 2TKA00004298 Switch - 2-pole, 1-gang, IP21
Part Number: 2TKA00004298
Quick Summary
ABB 2TKA00004298 Switch is a two-pole, one-gang control device for flush-mounted wiring. This compact switch helps engineers reduce enclosure footprint while maintaining reliable actuation for control and orientation applications. A common challenge is balancing clean wiring with robust connections; the 2TKA00004298 uses screw terminals capable of two rigid wires and convenient Push-In connection, plus screw fastening for secure installation. It meets essential certifications and standards: CE conformity, RoHS compliance, and REACH declarations, with an IP21 degree of protection to handle typical indoor environments. By integrating this switch into panel boards, procurement gains predictable lead times, easy replacement, and consistent aesthetics, while maintaining compliance with WEEE and EPDed product lines.
Product Information
Extended Description
2TKA00004298 ABB: Switch with screwless terminals. The terminals are for max 2 rigid wires. Including switch insert and rocker.
Instructions and Manuals
9AKK107492A9690
Mounting Type
Flush-mounted (plaster)
Type of Fastening
Screw
Degree of Protection
IP21
Data Sheet, Technical Information
9AKK107492A9690
Function
Control and orientation
Number of Rocker Switches
1
Wiring Configuration
2-pole 1-gang 1-way switch
Actuator Type
Rocker/button
Connection Type
Push-In
Illumination
Non-illuminated
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Maximum Switching Current
Fluorescent Lamps 16 A
Design Range
Impressivo
Surface Finishing
Lacquered, Matt
Material
Plastic, Thermoplastic
Label Space Provided
No
RAL Number
RAL 9016 - Traffic White
Color
Black
Product Net Width
70.00 mm
Product Net Height
85.000 mm
Product Net Depth / Length
33.000 mm
Product Net Weight
0.076 kg
Built-In Depth (t2)
18 mm
E-Number (Finland)
2106093
E-Number (Norway)
1416672
E-Number (Sweden)
1815340
Environmental Product Declaration - EPD
EPD for Impressivo Flush Switches
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Switches ENG
ETIM 9
EC001590 - Installation switch
Feature: Screw terminals and Push-In connections reduce wiring effort and error; Business Impact: speeds up installation, lowers labor costs, and enhances reliability in control panels; Application: ideal for ABB Impressivo flush switches or standard 2-pole circuits in industrial enclosures. Feature: 2-pole 1-gang 1-way configuration simplifies wiring topology; Business Impact: minimizes backbox complexity and reduces miswiring risk; Application: commonly used in single-circuit control stations and panel boards where space is at a premium. Feature: IP21 rated, non-illuminated, and robust plastic housing; Business Impact: suitable for indoor environments with splash protection, reduces maintenance, and extends service life; Application: factory floors, offices, and commercial installations requiring durable, non-illuminated switches. Feature: Flush-mounted (plaster) installation with 18 mm built-in depth; Business Impact: enables clean wall aesthetics and faster retrofit projects; Application: retrofit of existing plaster walls and new-build electrical installations. Feature: Design and finish (Impressivo, lacquered matt black) with 70x85x33 mm footprint and 0.076 kg weight; Business Impact: lightweight, easy handling, and consistent appearance across panels; Application: decorative as well as functional switch installations in commercial interiors. Feature: Compliance and documentation set (CE, RoHS, REACH, WEEE, EPD); Business Impact: verifiable regulatory compliance reduces risk for audits and customer approvals; Application: procurement and compliance teams can rely on standardized declarations for audits and supplier qualification.
Get a Quick Quote for a ABB 2TKA00004298
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00004298?
Enquire Now
FAQs
The 2TKA00004298 uses screw terminals suitable for two rigid wires and a Push-In option for quick connections. Mount it flush with plaster, using the provided 9AKK107492A9690 manual as a reference; ensure a secure screw fastening and verify IP21 protection after installation.
rated for 250 V and 16 A with a 2-pole, 1-gang 1-way configuration. It features a non-illuminated rocker, Push-In connection, and a maximum switching current suitable for Fluorescent Lamps up to 16 A in typical panel circuits.
Yes. It belongs to the Impressivo design range, features a lacquered matt black finish, and is sized for 70 mm width, 85 mm height, and 33 mm depth, making it a good fit for decorative yet rugged commercial installations.
The product includes a CE Declaration of Conformity, RoHS information, REACH declarations, and WEEE classification. An Environmental Product Declaration (EPD) is available for Impressivo Flush Switches to support sustainability reporting.
Labor efficiency comes from screwless-like wiring with Push-In terminals, reduced backbox space due to compact dimensions, and reliable 16 A operation. The durable thermoplastic housing and RoHS/REACH compliance help minimize maintenance costs and ensure long service life in industrial environments.
