2TKA00004463
Part Number: 2TKA00004463
Product Information
Extended Description

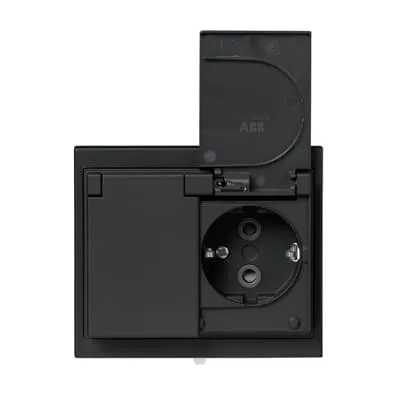

2TKA00004463 ABB: There are terminals for each contact of the socket outlet for max 4 rigid wires. No X-terminals. The socket outlet insert without the cover plate is screen-protected.
Instructions and Manuals
Bulletin (.PDF) [EN] Impressivo black matt
Mounting Type
Flush mounted (plaster)
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP44
Data Sheet, Technical Information
Bulletin (.PDF) [EN] Impressivo black matt
Number of Phases
1
Number of Gangs
2
Connection Type
Push-In
Socket Outlet Type
Protective Contact (SCHUKO)
Protection Cap Type
Hinged Lid
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 ... 50 Hz
Design Range
Impressivo
Surface Finishing
Lacquered | Matt
Material
Plastic, Thermoplastic
Legend
Without imprint
Label Space Provided
No
RAL Number
RAL 9005 - Jet Black
Color
Black
Product Net Width
100.000 mm
Product Net Height
85.000 mm
Product Net Depth / Length
48.000 mm
Product Net Weight
0.119 kg
Built-In Depth (t2)
17 mm
Dimension Diagram
Dimension Diagram (.PDF) [XX] 302EUJW-xx
E-Number (Finland)
2516135
E-Number (Norway)
1514319
E-Number (Sweden)
1815383
Environmental Product Declaration - EPD
EPD for Shuttered Socket Outlets
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity 302 - Socket outlets ENG
ETIM 9
EC000125 - Socket outlet
