2TKA00004662
Part Number: 2TKA00004662
Product Information
Extended Description

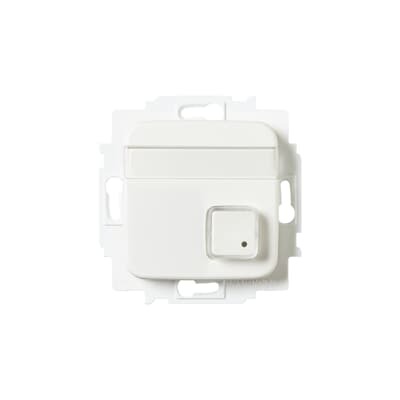

2TKA00004662 ABB: Momentary switch, 1 change over contact. Good marking possibilities. Nominal voltage of LED: 24 V ac/dc (operates 8 – 30 V ac/dc, britghtness changes). Loading capacity of switch (max) 30 V ac / 35 V dc, 100 mA ac/dc, 3 VA / 3 W.
Instructions and Manuals
Installation Instruction FAP1021_CTI1.221
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP20
Data Sheet, Technical Information
Installation Instruction FAP1021_CTI1.221
Number of Poles
1P
Number of Rocker Switches
1
Actuator Type
Push button
Connection Type
Screw
Rated Voltage (Ur)
24 V
Rated Current (In)
1 A
Number of Contacts CO
1
Number of Contacts NC
4
Number of Contacts NO
0
Design Range
Jussi
Surface Finishing
Untreated
Material
Plastic, Thermoplastic
Legend
None
Label Space Provided
Yes
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
0.071 m
Product Net Height
0.039 m
Product Net Depth / Length
0.071 m
Product Net Weight
0.0346 kg
Built-In Depth (t2)
21 mm
E-Number (Finland)
7005583
E-Number (Sweden)
5500558
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
68499d80-698f-4b21-a702-f5434b9ab470 Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Signal EMC products ENG
ETIM 9
EC000029 - Push button
