2TKA00004836
Part Number: 2TKA00004836
Product Information
Extended Description

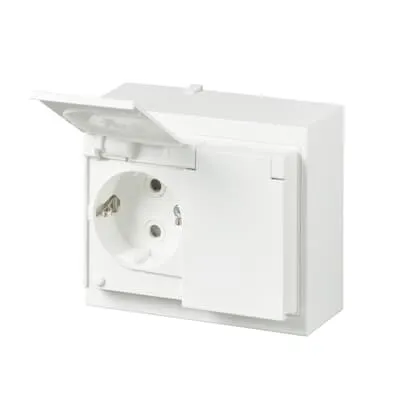

2TKA00004836 ABB: Impressivo flush mounting devices are installed in surface with surface mounting boxes. The box depth is not enough for electronic products, such as dimmers. The material is a durable high quality plastic. Cleaning with a mild, standard household detergent. Be careful when cleaning with a powerful dissolvent.
Instructions and Manuals
Bulletin (.PDF) [EN] Impressivo black matt
Mounting Type
Flush mounted (plaster)
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP44
Data Sheet, Technical Information
Bulletin (.PDF) [EN] Impressivo black matt
Number of Phases
1
Number of Gangs
2
Connection Type
Push-In
Socket Outlet Type
Protective Contact (SCHUKO)
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 ... 50 Hz
Design Range
Impressivo
Surface Finishing
Lacquered | Matt
Material
Plastic | Thermoplastic
Legend
Without imprint
Label Space Provided
No
RAL Number
RAL 9016 - Traffic White
Color
White
Product Net Width
100.0 mm
Product Net Height
85.000 mm
Product Net Depth / Length
52.000 mm
Product Net Weight
0.152 kg
E-Number (Finland)
2406035
E-Number (Sweden)
1815541
Environmental Product Declaration - EPD
EPD for Shuttered Socket Outlets
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e4570899-35a4-4dee-b140-658a45689415 Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
9AKK10103A2378
ETIM 9
EC000125 - Socket outlet
