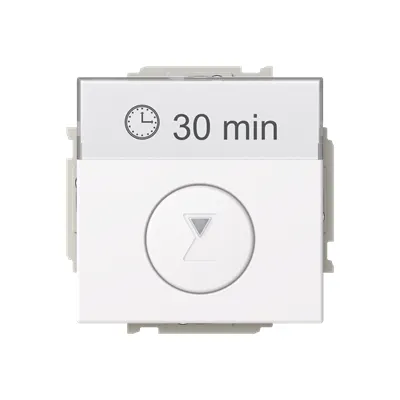

ABB 2TKA00004843 Countdown timer - IP21 CE Certified
Part Number: 2TKA00004843
Quick Summary
ABB 2TKA00004843 Countdown timer is a compact time switch designed for controlling lighting and auxiliary loads in industrial environments. Engineers often struggle with rigid presets and unclear labeling, which can delay commissioning and increase energy waste. This timer delivers fixed time options from 15 minutes to 8 hours and offers exchangeable center-plate labels so you can mark the selected duration at a glance. It carries CE conformity with RoHS and REACH compliance, plus IP21 protection for reliable operation in work sites. With 230 V operation, a 10 A rating, and a flush-mounted form factor, it combines straightforward installation with predictable performance for efficient facility management.
Product Information
Extended Description
2TKA00004843 ABB: Fixed time options: 15min, 30min, 1h, 2h, 4h and 8h. Exchangeable labels with the time options to mark center plate with selected time. 230 VAC, 50Hz, 0 - 40C, IP21, 2-pole wiring. 10A resistiv load (2300W), 2AX-load (e.g. fluorescent lamp). Screw terminals max 2,5mm2. Signal light when active._x005F_x000D_
Instructions and Manuals
Instruction T210-xxx CTI1.440
Mounting Type
Flush-mounted
Type of Fastening
Mounting with Screw
Degree of Protection
IP21
Data Sheet, Technical Information
Catalog (.PDF) [EN] Wiring Accessories Impressivo and Jussi
Minimum Switching Time
15 minute [unit of time]
Time Range
15 ... 480_MIN$
Rated Voltage (Ur)
230 V
Rated Current (In)
10 A
Frequency (f)
50 … 50 Hz
Power Watt
2300 W
Number of Contacts NO
1
Design Range
Impressivo
Surface Finishing
Untreated | Matt
Material
Plastic | Thermoplastic
RAL Number
RAL 9016 - Traffic White
Color
White
Product Net Width
0.071 m
Product Net Height
0.034 m
Product Net Depth / Length
0.071 m
Product Net Weight
0.077 kg
Built-In Depth (t2)
18 mm
Dimension Diagram
Dimension Diagram (.PDF) [XX] T210-8x
E-Number (Finland)
2619416
E-Number (Sweden)
1815566
Environmental Product Declaration - EPD
EPD for Timer
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
5aa38883-8972-43e9-a03e-8752c578104c Finland (FI)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Timer ENG
ETIM 9
EC001594 - Time switch clock for domestic switching devices
Fixed time options from 15 minutes to 480 minutes give operators precise control over resistive or light loads, minimizing overshoot and energy waste. By aligning with standard maintenance intervals, it reduces unnecessary power-offs and improves process stability; ideal for corridor lighting control, equipment start-ups, and small motor applications in production lines. The timer is designed for 230 VAC 50 Hz operation and supports a 10 A load with a single normally open contact, enabling simple integration into existing control circuits and reducing the need for additional relays. Exchangeable labels on the center plate simplify commissioning and make field modifications quick and error-free, boosting efficiency during retrofits or new installations. An active signal light provides immediate status feedback, improving operator awareness and reducing downtime. The device is flush-mounted with screw mounting and a built-in depth of 18 mm, delivering a compact footprint suitable for limited panel space and easy retrofits with standard 2.5 mm² terminals. Compliance with RoHS, REACH, CE declarations, and EPD/SCIP reporting ensures regulatory alignment and sustainability considerations across manufacturing environments.
Get a Quick Quote for a ABB 2TKA00004843
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2TKA00004843?
Enquire Now
FAQs
Install the 2TKA00004843 using flush-mounted mounting with screws, wiring a single NO contact across a 230 V, 50 Hz supply. Use the 2.5 mm² screw terminals for two-pole wiring and ensure the IP21-rated enclosure is closed to maintain protection. The built-in 18 mm depth fits compact panels, and labeling options can be updated on the center plate after mounting.
The timer operates at 230 V AC, 50 Hz, with a rated current of 10 A and a power rating up to 2300 W for resistive loads. It features one normally open contact (NO) and supports a fixed time range from 15 minutes to 480 minutes. The device is IP21 protected and is designed for screw-terminal connections up to 2.5 mm².
Yes. Its fixed-time options and 230 V AC supply are ideal for lighting control in corridors or work areas, as well as equipment start-up sequences in manufacturing. The exchangeable labels speed commissioning, and the active indicator assists monitoring. Its IP21 rating provides protection in typical industrial environments while maintaining simple integration with existing control circuits.
This timer includes CE conformity with a Declaration of Conformity, RoHS compliance, and REACH declarations. It is associated with SCIP reporting and has an Environmental Product Declaration (EPD) for the timer. WEEE classification is Small Equipment, and the device supports sustainable manufacturing and disposal practices aligned with European regulations.
Expect faster commissioning due to exchangeable time labels, reduced wiring complexity from screw terminals and a single NO contact, and clearer status indication via the active light. The compact flush-mounted design saves panel space, while CE/ RoHS/ REACH compliance helps minimize regulatory risk and potential costs associated with non-conforming components, contributing to overall lifecycle cost reductions.
