2TKA00004862
Part Number: 2TKA00004862
Product Information
Extended Description

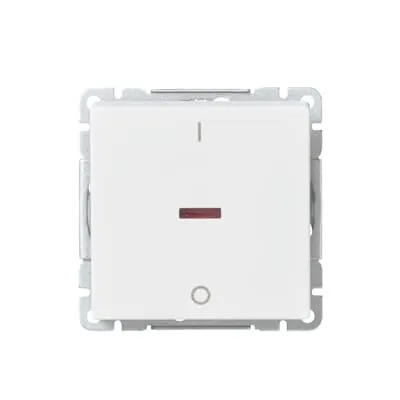

2TKA00004862 ABB: Switch with screwless terminals. The terminals are for max 2 rigid wires. Including switch insert and rocker.
Instructions and Manuals
9AKK107492A9690
Mounting Type
Flush mounted (plaster)
Type of Fastening
Screw
Degree of Protection
IP21
Data Sheet, Technical Information
9AKK107492A9690
Function
Control and orientation
Number of Rocker Switches
1
Wiring Configuration
2-pole switch
Actuator Type
Rocker/button
Connection Type
Push-In
Lamp Type
Other
Illumination
Illuminated
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Maximum Switching Current
Fluorescent Lamps 16 A
Design Range
Impressivo
Surface Finishing
Lacquered | Matt
Material
Plastic | Thermoplastic
Label Space Provided
No
RAL Number
RAL 9016 - Traffic White
Color
White
Product Net Width
70.00 mm
Product Net Height
35 mm
Product Net Depth / Length
71 mm
Product Net Weight
0.076 kg
Built-In Depth (t2)
18 mm
E-Number (Finland)
2166402
E-Number (Sweden)
1815445
Environmental Product Declaration - EPD
EPD for Impressivo Flush Switches
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity Switches ENG
ETIM 9
EC001590 - Installation switch
