2TKA00004878
Part Number: 2TKA00004878
Product Information
Extended Description

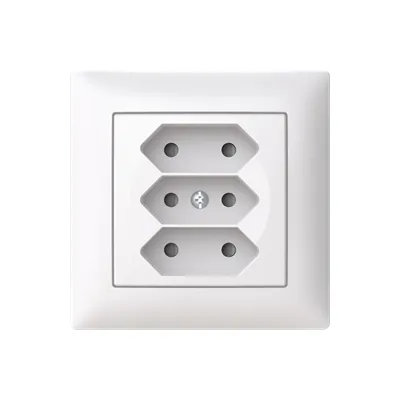

2TKA00004878 ABB: 3-gang Euro socket outlet with cover plate. There are terminals for each contact of the socket outlet for max 4 rigid wires and 2 X-terminals for 2-rigid wires. The socket outlet insert without the cover plate is screen-protected. Bio-circular plastics used in the frame and centre plate.
Mounting Type
Flush mounted (plaster)
Type of Fastening
Mounting with Claw | Mounting with Screw
Degree of Protection
IP21
Number of Phases
1
Number of Gangs
3
Connection Type
Push-In
Socket Outlet Type
EURO Plug
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
2.5 A
Frequency (f)
50 ... 60 Hz
Design Range
Saga
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Legend
Without imprint
Label Space Provided
No
RAL Number
RAL 9003 - Signal White
Color
White
Product Net Width
85 mm
Product Net Height
85 mm
Product Net Depth / Length
5 mm
Product Net Weight
0.10426 kg
Built-In Depth (t2)
25 mm
Dimension Diagram
Dimension Diagram (.PDF) [XX] 303UJ-916
E-Number (Norway)
1511607
E-Number (Sweden)
1815625
End Of Life Disassembling Instructions
End of Life Instruction for SAGA™ products covered by WEEE
Environmental Product Declaration - EPD
EPD for Saga Socket Outlets and Outlet With Shutters for Flush Products
RoHS Information
RoHS Product Declaration Wiring Accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
REACH / SCIP Product Declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240314
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of conformity 303 - Socket outlets ENG | CE Declaration of conformity 303 - Socket outlets FI
ETIM 9
EC000125 - Socket outlet
